4″ Performance System w/ Front Dirt Logic 2.5 Coilovers & Rear Dirt Logic Shocks – K2193DL
4″ Performance System w/ Front Dirt Logic 2.5 Coilovers & Rear Dirt Logic Shocks – K2193DL
2015-20 Ford F150 4WD
Fabtech’s 4” F150 system utilizes their proven heavy duty construction and design features found in their 6” systems but with less lift and at a much lower price. This 4” System allows use of 33" tall tires and features high arched lower control arm crossmembers constructed of 1/4 " thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.
The Performance System features Dirt Logic 2.5 Coilover front shocks and Dirt Logic 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride.
The 4” System allows use of 33” tires and is ESC (Electronic Stability Control) and Traction Control compliant.
Features
- Heavy Duty 1/4″ Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Front Dirt Logic 2.5 Coilovers
- Rear Block & U-bolt Kit

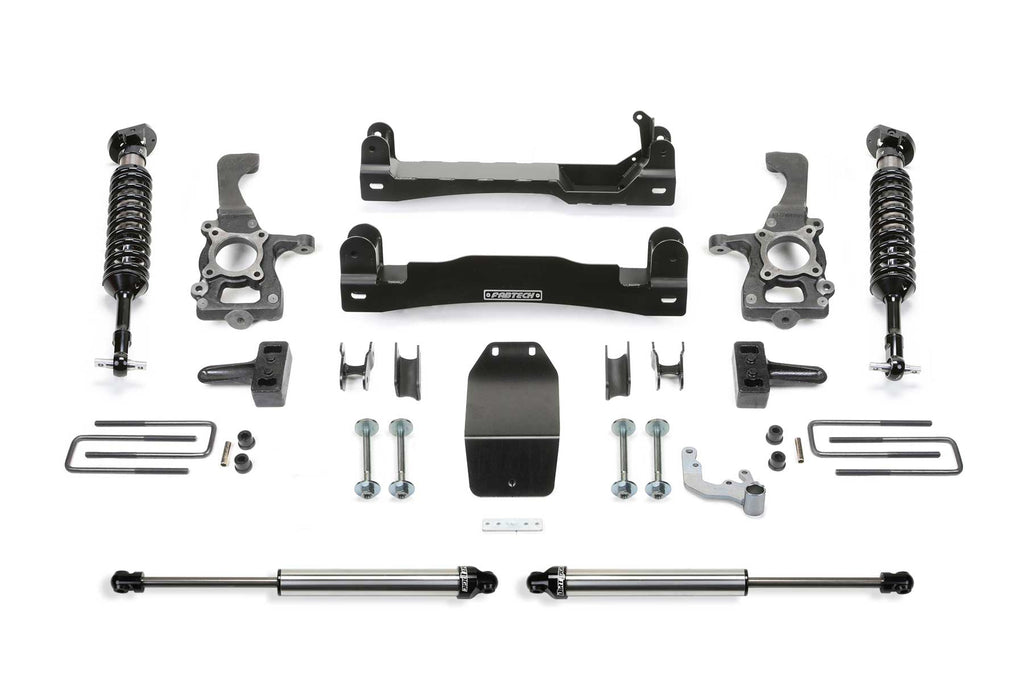

Part Numbers
| Oty | Part # | Description |
|---|---|---|
| 1 | FTS22176 | Component Box 1 |
| 1 | FTS22178 | Component Box 2 |
| 1 | FTS22183 | Front Dirt Logic 2.5 Coilovers |
| 2 | FTS810292 | Rear Dirt Logic 2.25 Non Resi |
– California Prop 65 Warning
-
FOOTNOTES
14. Can not use OEM wheel and tire.
20. Does not fit Standard Cab.
123. Will not fit Raptor models.
171. Will not fit diesel models.
