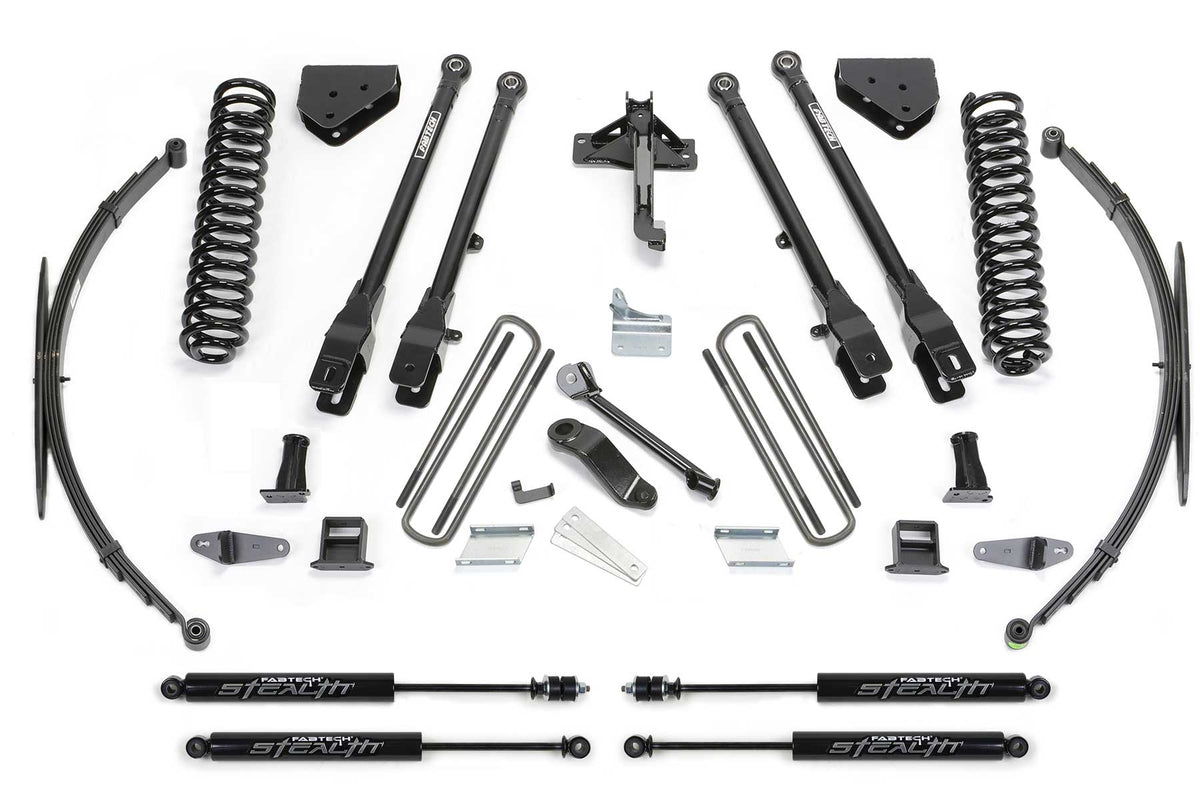

8″ 4 Link System w/ Stealth Shocks – K2129M
8″ 4 Link System w/ Stealth Shocks – K2129M
2008-16 Ford F250/F350 4WD
2011-13 Ford F450 4WD [8 Lug]
Special Shipping Required
This item must be shipped truck freight. Delivery requires a business address with a dock or forklift.
At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2″ OD heavy wall links feature race style 1″ Uniballs for superior strength. Thick 1/4″ steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our replacement Coil Springs. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is replacement Leaf Springs & u-bolt kit.
Features
- 2″ OD Heavy Wall Links
- Fabtech Heavy Duty 5 Ton Joints®
- Fabtech Front Coil Springs
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Leaf Springs
- Rear U-bolt Kit
Part Numbers
| Oty | Part # | Description |
|---|---|---|
| 1 | FTS22025BK | Coil Box Kit |
| 1 | FTS22140 | Component Box 1 |
| 1 | FTS22080BK | Component Box 2 |
| 1 | FTS22114 | Rear Leaf Spring Kit |
| 2 | FTS6189 | Front Stealth Shocks |
| 2 | FTS6063 | Rear Stealth Shocks |
– California Prop 65 Warning
-
FOOTNOTES
3. Non dually models only.
27. Front drive shaft modification may be required to clear exhaust on gas motor.
29. Rear leaf springs may reduce load carrying capacity.
