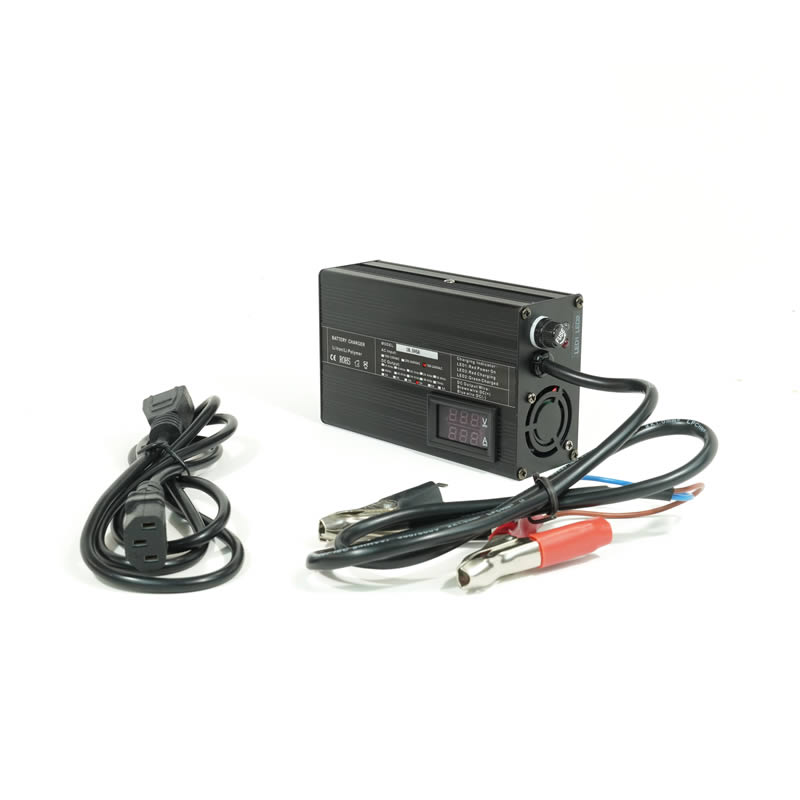

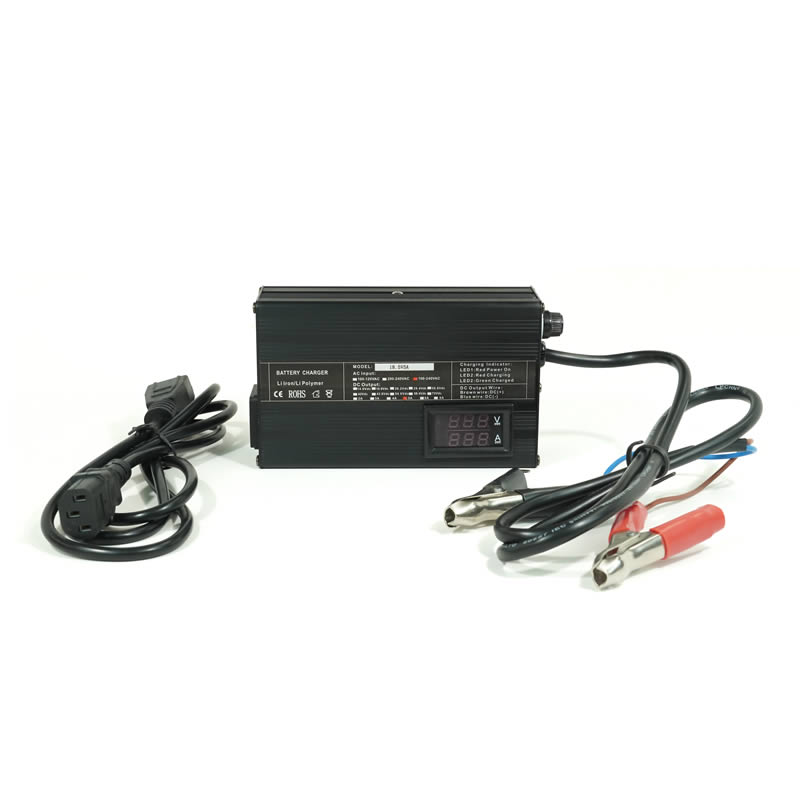

AG-BC-16V Lithium Battery Charger
The Antigravity 16-Volt Charger works with 110 or 220 voltage. Foreign countries just need an adapter for the plug.
This 16-Volt Charger works with any 16V Antigravity Battery, and should ONLY be used with 16V Batteries. With a 5-amp charge rate it offers a fast charge and is a solid, reliable unit for maintaining 16-Volt Lifepo4 batteries.[/vc_column_text]
Features
- Advanced high frequency switching mode power supply technology.
- DC output isolated from AC input.
- Single Input ll0Vac and 230Vac or Universal Input 110/230Vac, 50Hz-60Hz.
- Charging parameters are insensitive to the AC input line voltage variations.
- Completely automatic battery charging: CC, CV.
- Two LEDs: LED1 indicates Power On or Off. LED2 indicates Charging/Charged.
- LED SCREEN indicates charging Voltage and Current.
- Short-circuit, over-voltage, over-temperature, reverse-polarity protections.
- Efficiency > 85%.
- Forced ventilation with fans.
- 100% full load burn-in test.
[/vc_column_text]
Operation
- Connect the Charger to the Wall Outlet/Power Supply.
- Connect the Charger to the Battery making sure Polarity is correctly connected to the Battery.
Red Clamps to Positive (+) Battery Connection
Black Clamps to Negative (-) Battery Connection - LED1: indicates the Charger is plugged in. RED LED confirms the AC power is on.
- LED2: Green confirms the Charger is connected. FLASHES Red/Green when charging.
- LED2: will show GREEN SOLID LED when the battery is fully charged.
[/vc_column_text][/vc_column][/vc_row][vc_row][vc_column][vc_separator color=”black”][vc_column_text el_class=”text-center”]
Compatible with Antigravity VTX20 and H6-30-16
(and other brands of 16-Volt batteries)[/vc_column_text][vc_row_inner][vc_column_inner width=”1/6″][/vc_column_inner][vc_column_inner width=”2/3″]
