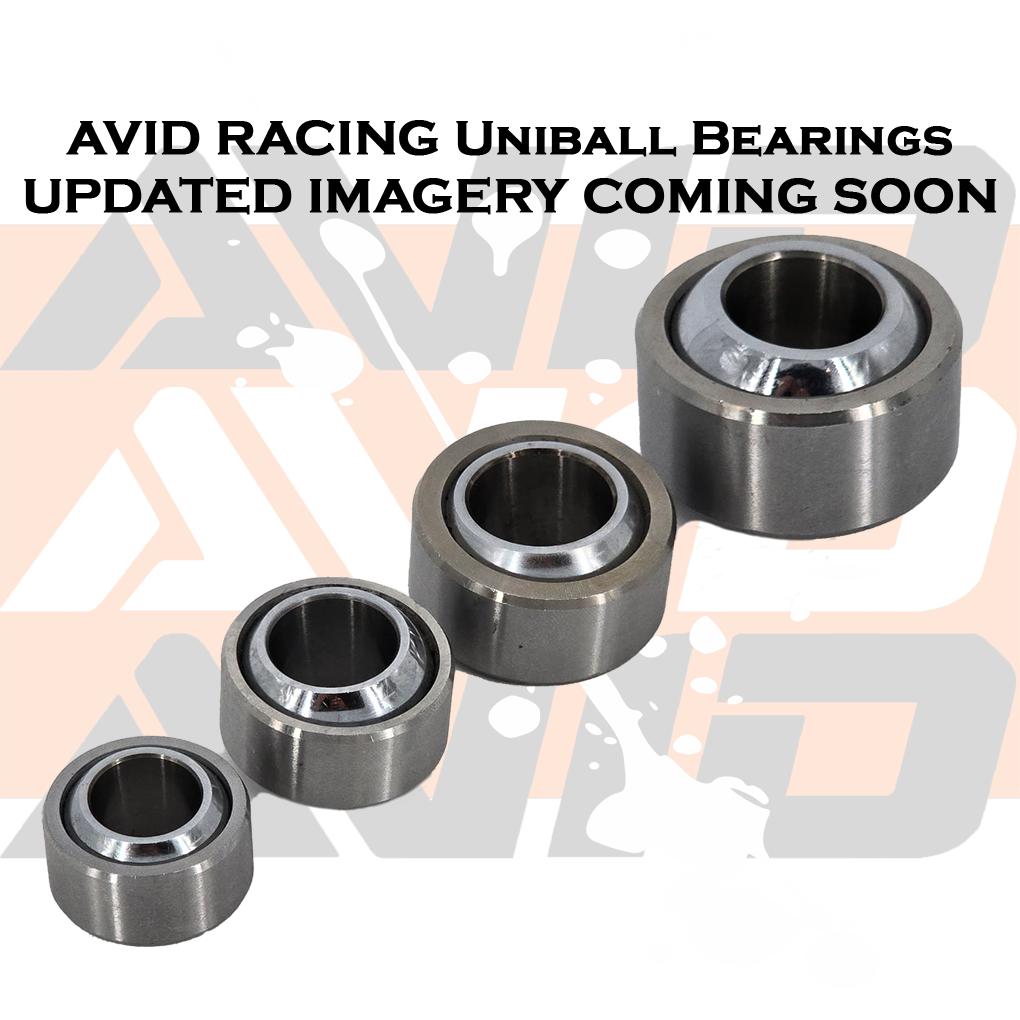

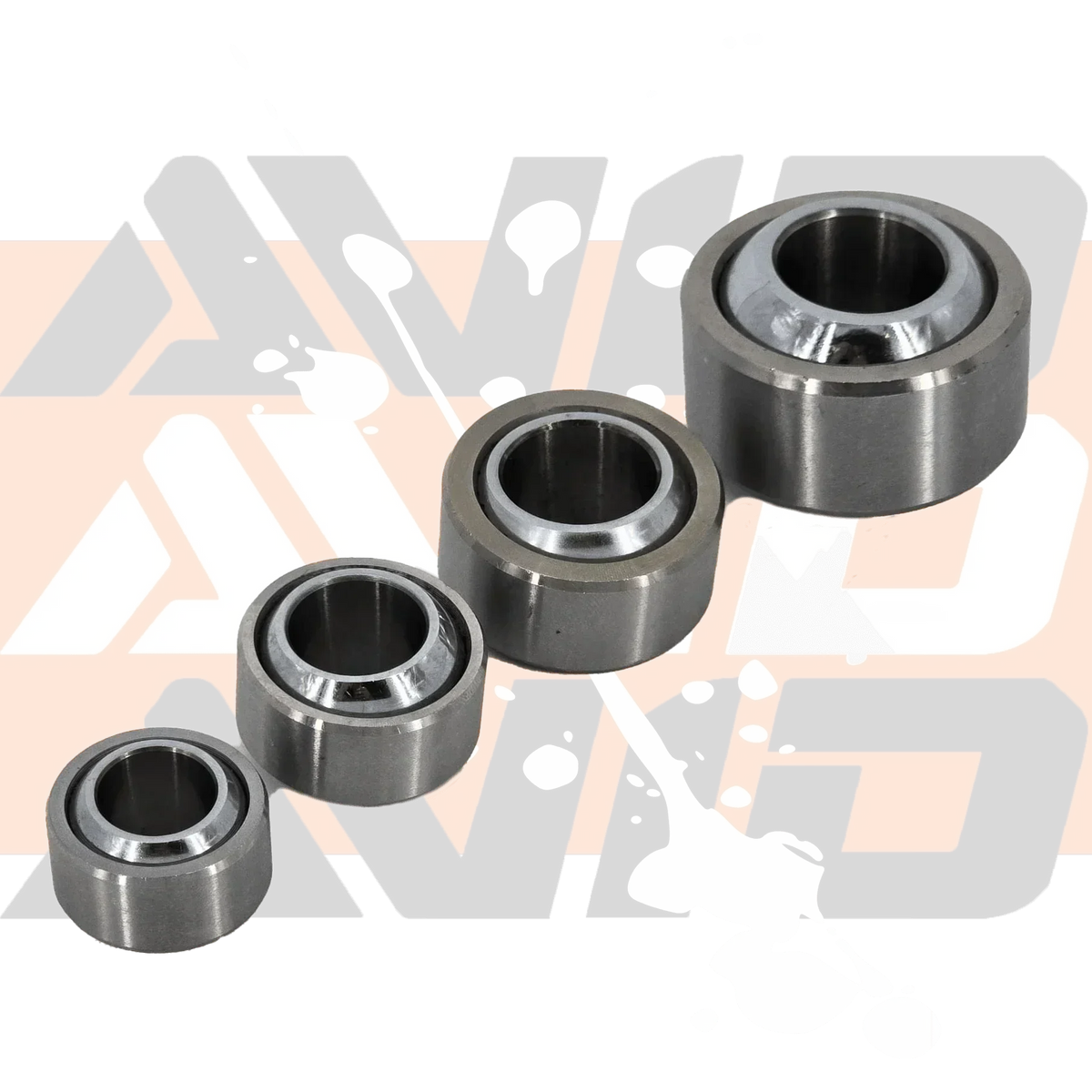

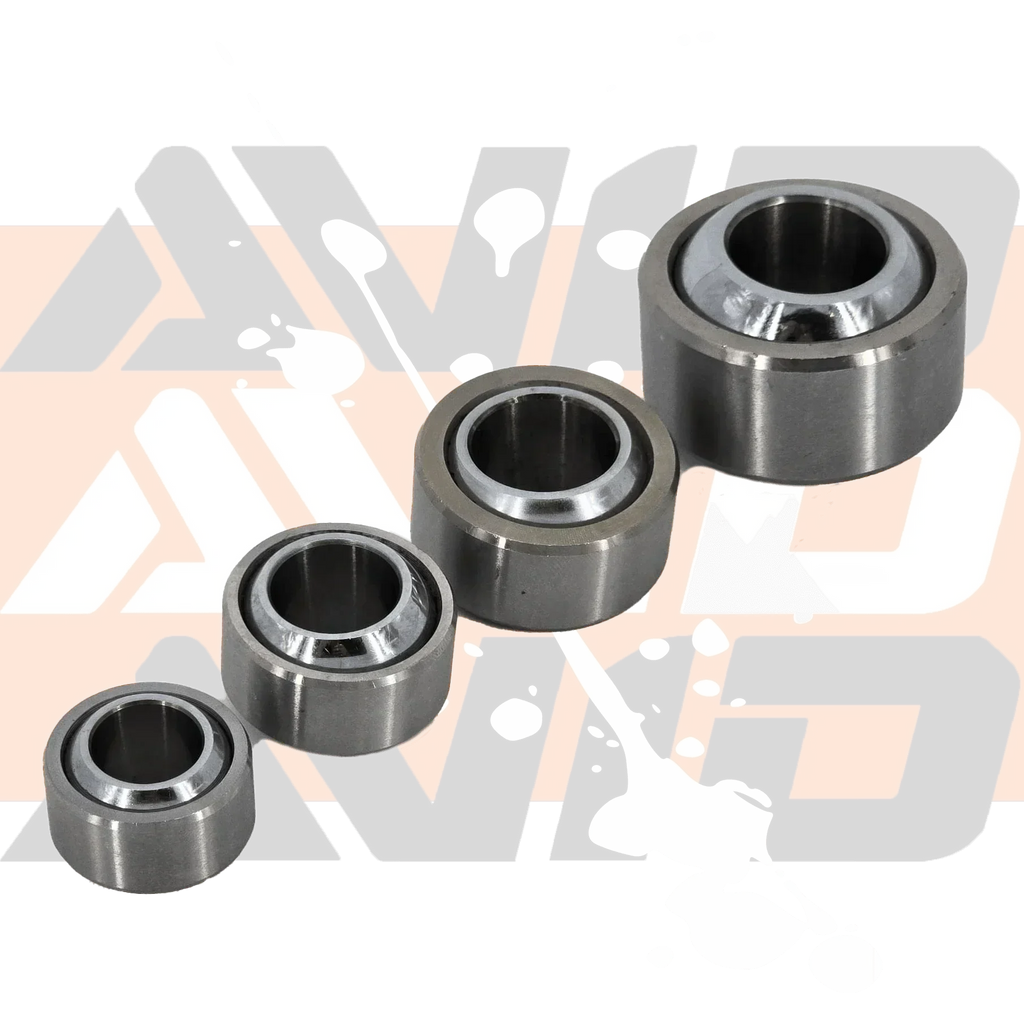

AIN10T-F1 is a heavy duty precision uniball / spherical bearing with a 5/8" inner diameter and 1-5/16" outer diameter.

The supplied AIN chart identifies a 52100-steel ball and alloy-steel race; this draft does not claim a liner because the chart states that PTFE liners are available without tying that option to the exact AVID suffix. This listing includes one bearing; cups, retaining rings, misalignment spacers, and mounting hardware are not included.

Key Specs

• Part Number: AIN10T-F1
• Product Type: heavy duty precision uniball / spherical bearing
• Bearing ID / Bore: 5/8" (0.625 in)
• Bearing OD / Head Diameter: 1-5/16" (1.3125 in)
• Bearing Width / Ball Width: 0.75 in
• Ball Diameter / Ball Radius Reference: 1.125 in ball diameter
• Misalignment Angle: 12 degrees
• Static Radial Load Rating: 37,930 lb
• Material: 52100 steel ball; alloy-steel race
• Finish: heat-treated, hard-chrome-plated ball; heat-treated, oil-coated race
• Style: heavy duty precision spherical bearing
• Included: One uniball bearing
• Approx. Weight: 0.165 lb

Fitment Notes

Verify bearing ID, OD, width, cup or housing size, spacer stack, and installed width before ordering. Final fitment depends on the housing, spacers, and application-specific hardware.
