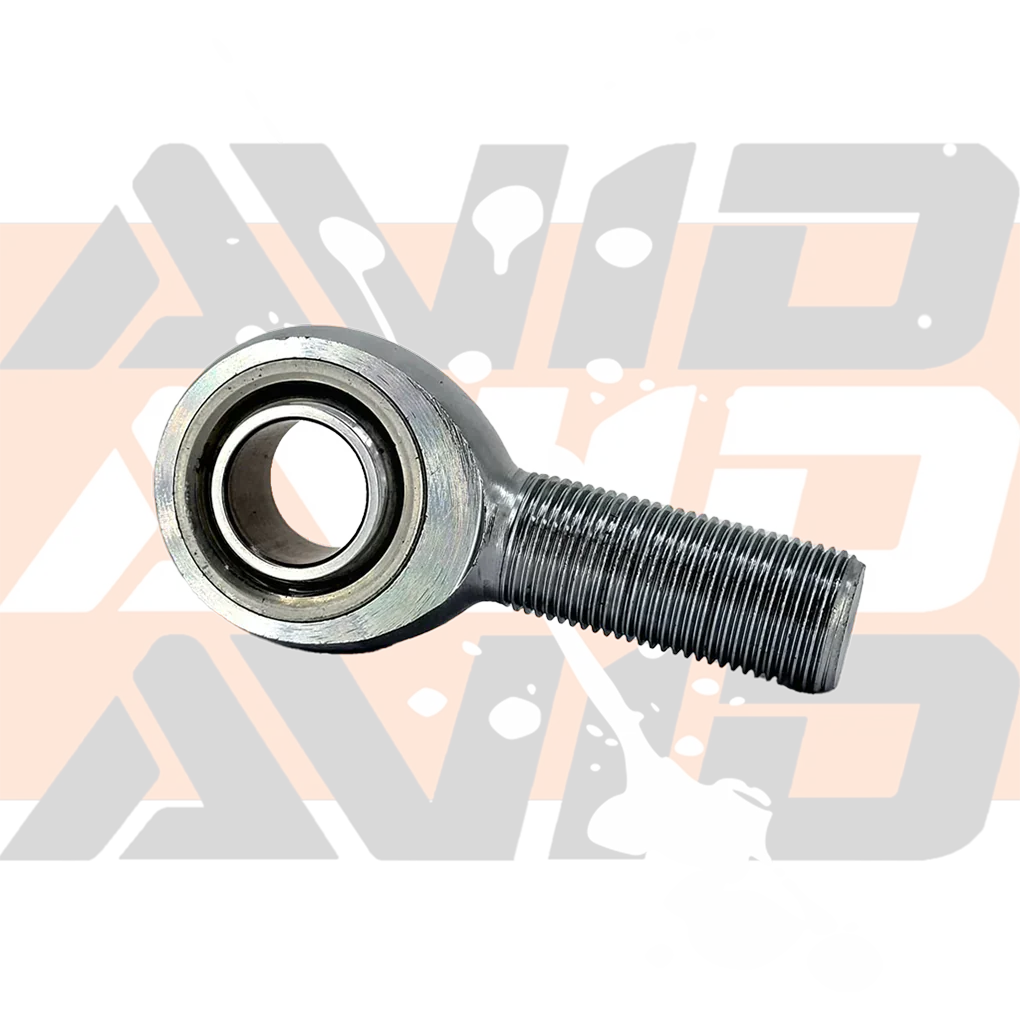

JMX14T is a 3-piece male chromoly rod end with a 7/8-14 right-hand thread and a 0.8750 inch bore.

Its PTFE-lined alloy-steel construction uses a heat-treated, hard-chrome-plated ball and a heat-treated, zinc-plated and chromate-treated body and race. This listing includes one rod end; mating hardware is sold separately unless stated otherwise.

Key Specs

• Part Number: JMX14T
• Product Type: Rod End
• Bearing ID / Bore: 0.875 in
• Bearing OD / Head Diameter: 2 in
• Bearing Width / Ball Width: 0.875 in / 0.77 in
• Ball Diameter / Ball Radius Reference: 1.375 in ball diameter
• Thread Size / Pitch: 7/8-14
• Thread Direction: Right-hand
• Thread Length: 1.875 in
• Centerline Length: 3.375 in
• Misalignment Angle: 12 degrees
• Static Radial Load Rating: 45,051 lb
• Material: alloy steel / chromoly rod-end construction
• Finish: zinc-plated chromate body and race; hard-chrome-plated ball
• Style: 3-piece male rod end, PTFE lined
• Included: One rod end
• Approx. Weight: 0.91 lb

Fitment Notes

Verify thread size, thread direction, bore size, mounting width, and required misalignment before ordering. Final fitment depends on the mating hardware and application geometry.
