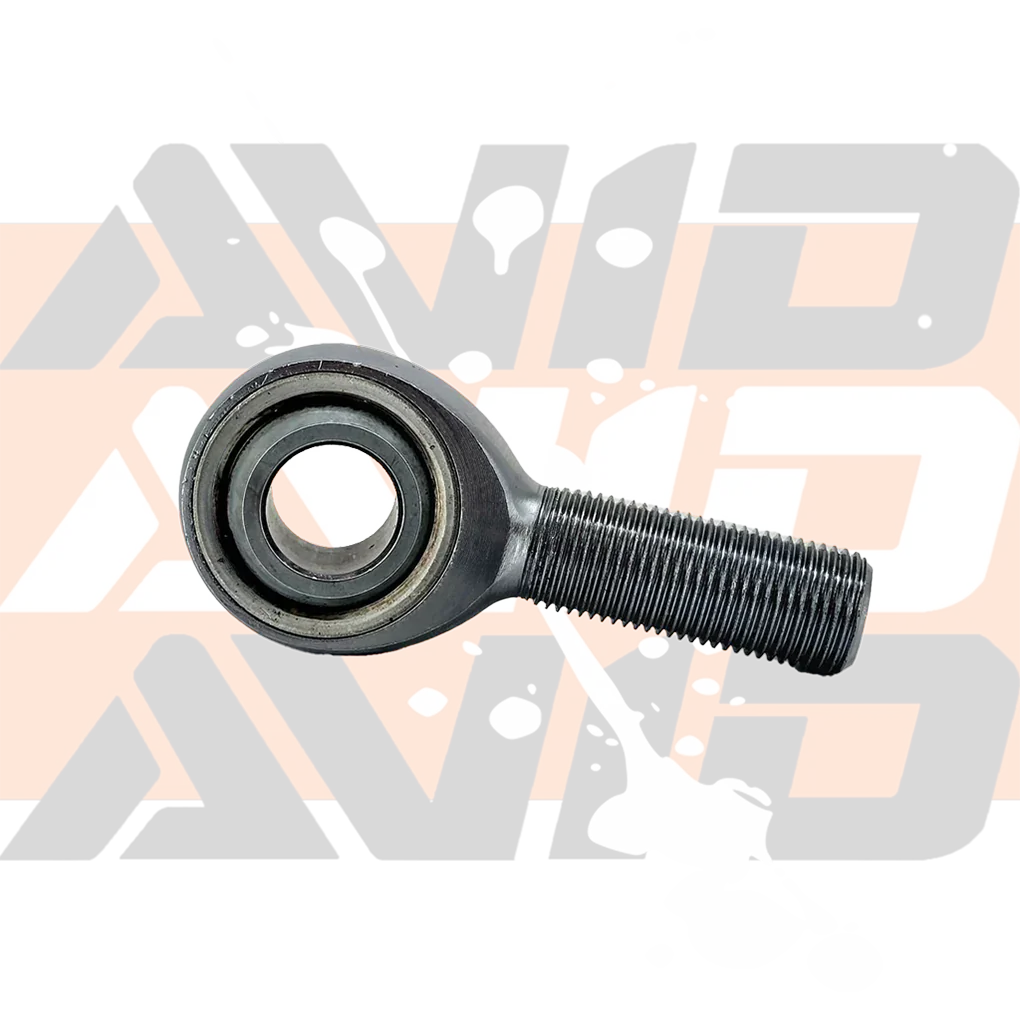

JMXL10T is a 3-piece male chromoly rod end with a 5/8-18 left-hand thread and a 0.6250 inch bore.

Its PTFE-lined alloy-steel construction uses a heat-treated, hard-chrome-plated ball and a heat-treated, zinc-plated and chromate-treated body and race. This listing includes one rod end; mating hardware is sold separately unless stated otherwise.

Key Specs

• Part Number: JMXL10T
• Product Type: Rod End
• Bearing ID / Bore: 0.625 in
• Bearing OD / Head Diameter: 1.5 in
• Bearing Width / Ball Width: 0.75 in / 0.562 in
• Ball Diameter / Ball Radius Reference: 1.125 in ball diameter
• Thread Size / Pitch: 5/8-18
• Thread Direction: Left-hand
• Thread Length: 1.625 in
• Centerline Length: 2.625 in
• Misalignment Angle: 16 degrees
• Static Radial Load Rating: 17,959 lb
• Material: alloy steel / chromoly rod-end construction
• Finish: zinc-plated chromate body and race; hard-chrome-plated ball
• Style: 3-piece male rod end, PTFE lined
• Included: One rod end
• Approx. Weight: 0.38 lb

Fitment Notes

Verify thread size, thread direction, bore size, mounting width, and required misalignment before ordering. Final fitment depends on the mating hardware and application geometry.
