Misalignment, 5/8" Bearing to 12mm Bolt Hole, Stack 1.5", Shock Eyelet | AVID Racing

Misalignment, 5/8" Bearing to 12mm Bolt Hole, Stack 1.5", Shock Eyelet

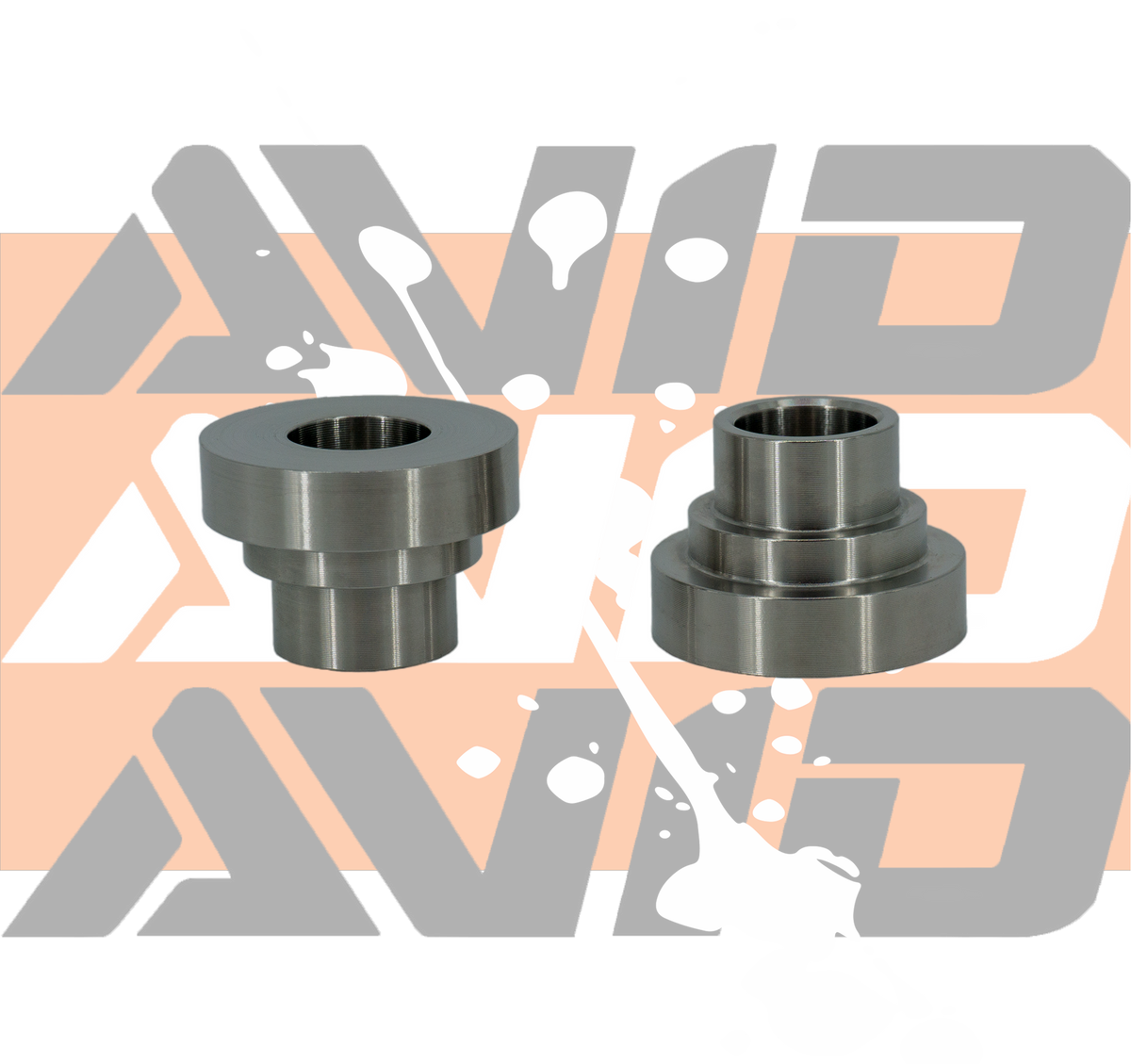

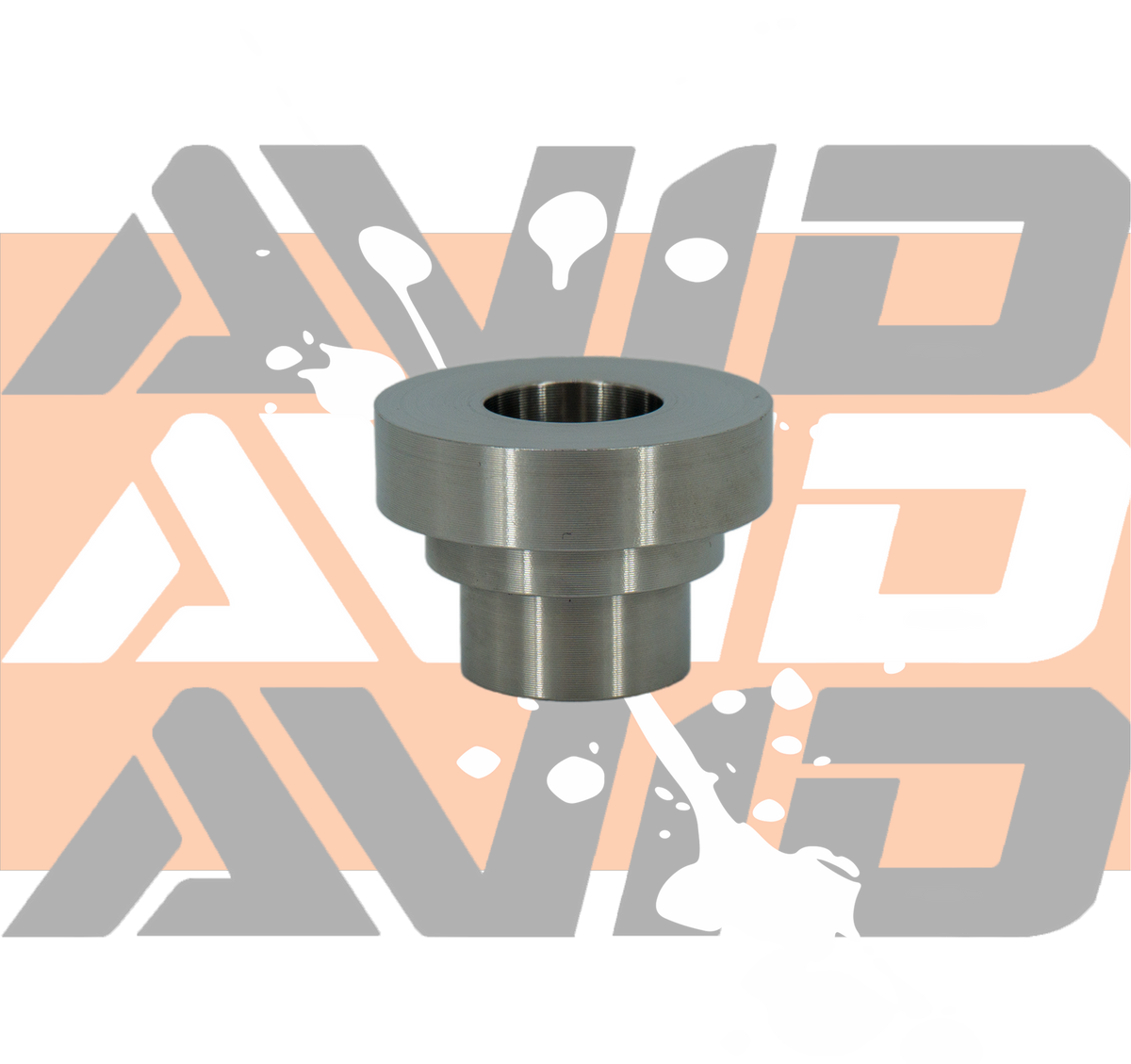

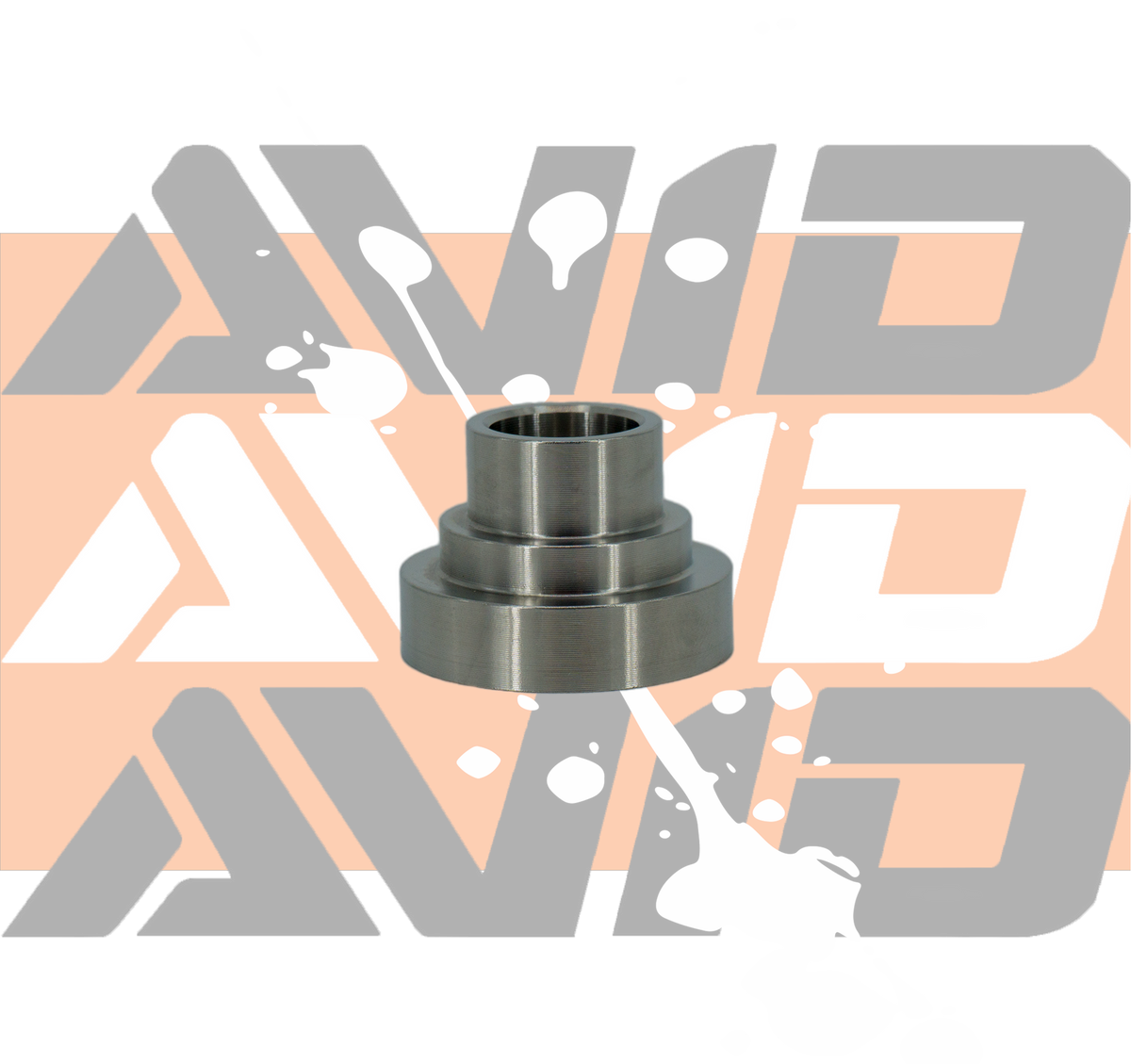

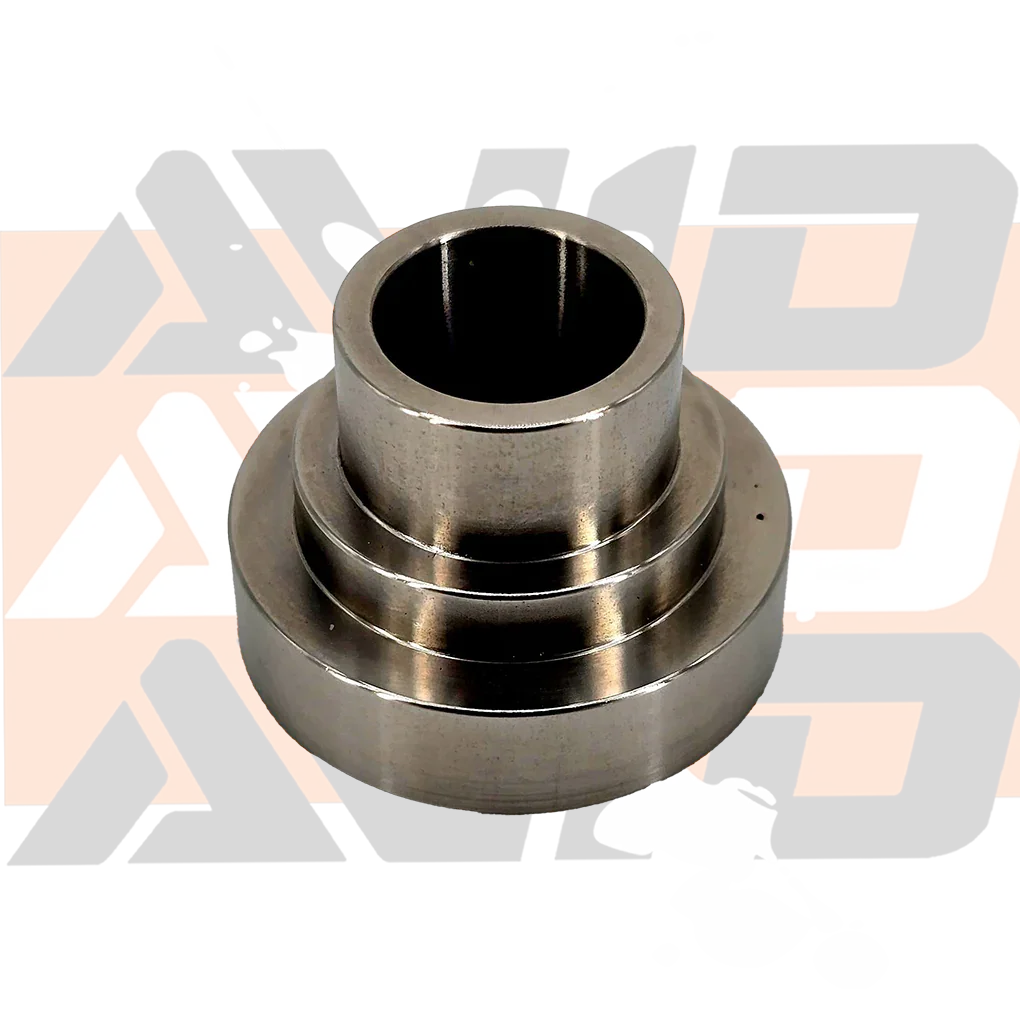

The AVID Racing Shock Eyelet is designed to adapt a 5/8" spherical bearing to a 12mm bolt while maintaining the correct fit, support, and stack height for suspension and steering assemblies. Machined from Stainless Steel, this spacer is built for strength, corrosion resistance, and long service life in harsh off-road and race environments.

This misalignment is intended for shock eyelet applications and provides a total installed stack height of 38.10mm (1.5") when used as a pair in the correct bearing. Designed for precise fitment, it helps keep the shock bearing centered and the bolt properly supported under load.

Key Specifications

• ID Bearing Size: 5/8"
• Bolt Hole Size: 12mm
• Stack Height: 38.10mm / 1.5"
• Ball Radius / Style: Shock Eyelet
• Material: Stainless Steel
