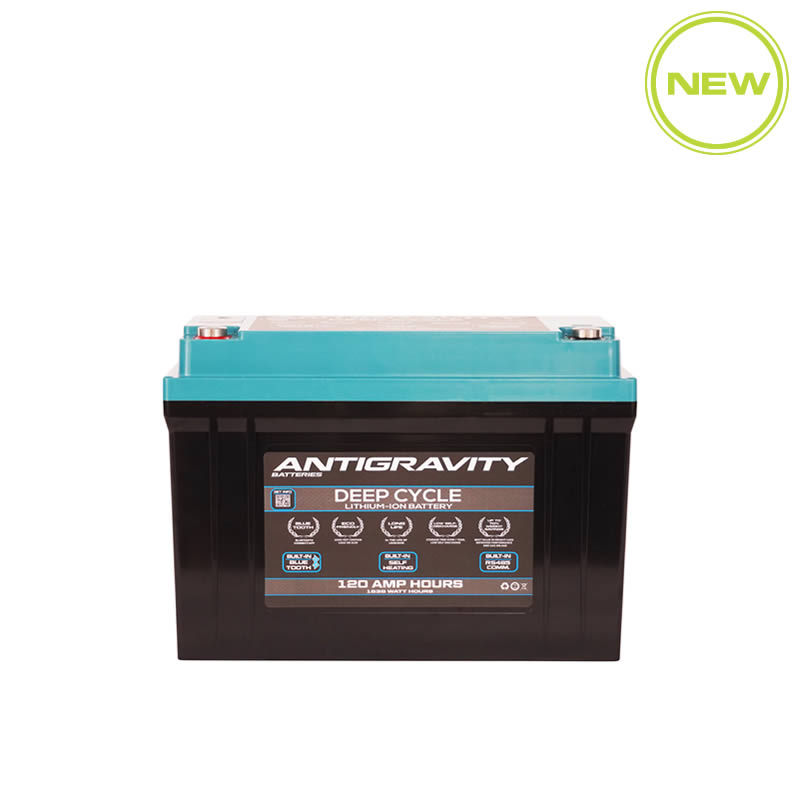

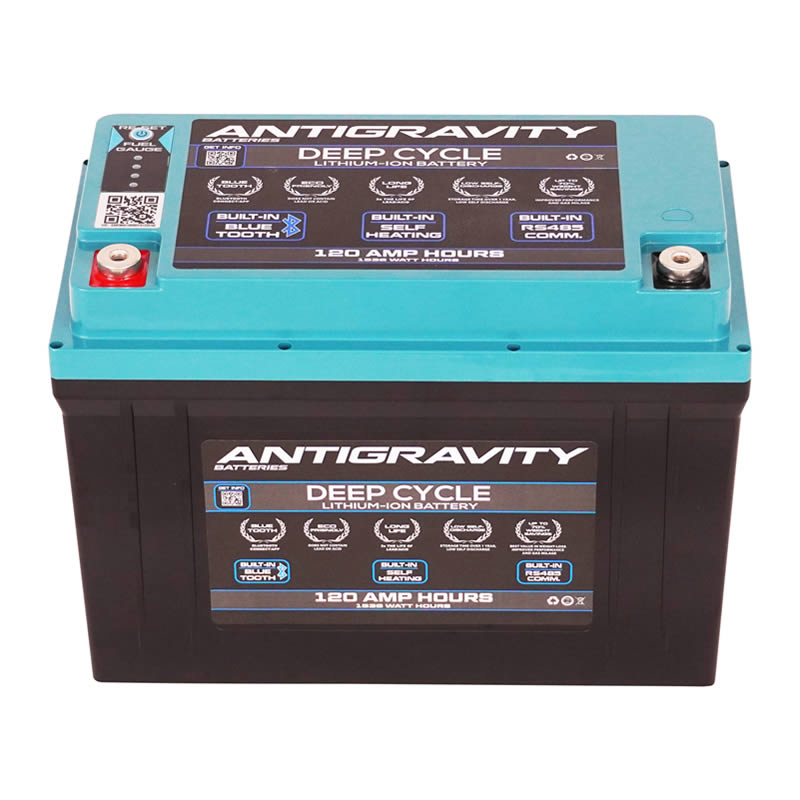

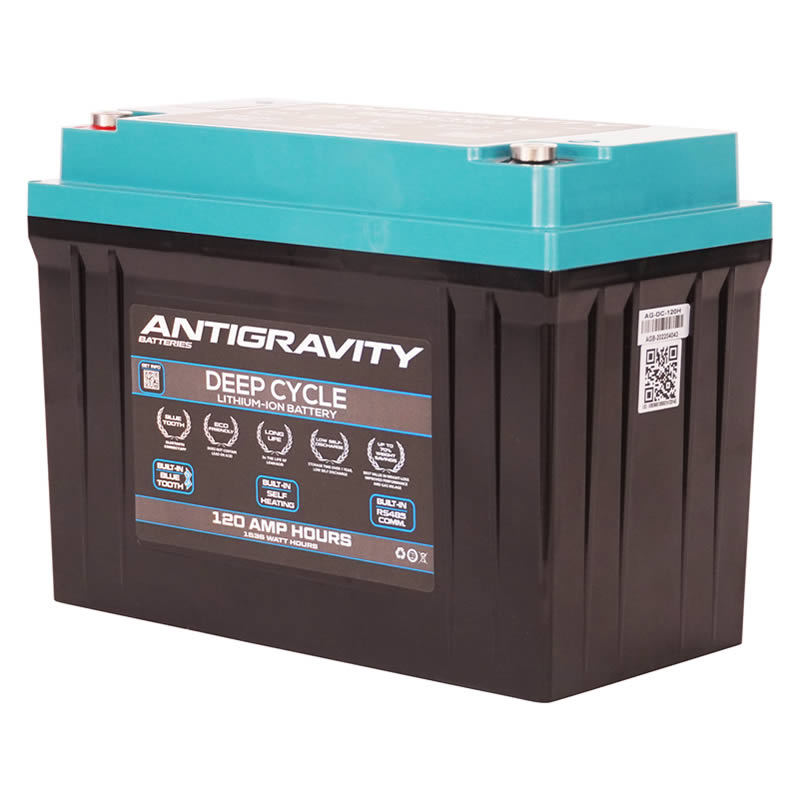

Antigravity DC-120H
120Ah 12v Lithium Deep Cycle Battery with Built-In Bluetooth Monitoring
ANTIGRAVITY BATTERIES are the most advanced Lithium Batteries currently on the market, and have been leading the way since 2010. We are also the first company to offer batteries with integrated Bluetooth Tracking! Our new Lithium AG-DC-120H Deep Cycle Battery comes with a first-of-its-kind Bluetooth Monitoring App so you can easily check the battery’s status using your Phone, Tablet, or Computer.
Along with real-time Bluetooth Monitoring, Antigravity Deep Cycle Batteries are made with Grade-A UL Listed cells and a state-of-the-art Battery Management System (BMS) to ensure the battery will provide you with years of the safest operation, highest performance and greatest satisfaction.[/vc_column_text][/vc_column][/vc_row][vc_row full_width=”stretch_row” css=”.vc_custom_1666578586003{padding-bottom: 42px !important;background-color: #ffffff !important;}”][vc_column][vc_single_image image=”138103″ img_size=”full” add_caption=”yes” alignment=”center”][/vc_column][/vc_row][vc_row css=”.vc_custom_1665541813036{margin-bottom: 42px !important;}” el_id=”120h-applications”][vc_column]
Deep Cycle Applications
The lightweight Antigravity DC-120H excels in Deep Cycle Applications such as uses in Recreation Vehicles (RVs), Vans, Van Life, Utility Trucks, Emergency Vehicles, Boats, Trolling Motors for Boats, Backup Power Supplies, Off-Grid Applications, Camping, Uninterruptible Power Supplies (UPS), Emergency Lighting, Alarm Systems, Photovoltaic Energy Storage Systems (Solar), Ham Radios, and many other uses where ultra lightweight, high amp-hour capacity and long-lasting durability are required. Take us on your next adventure![/vc_column_text][/vc_column][/vc_row][vc_row full_width=”stretch_row_content_no_spaces”][vc_column]

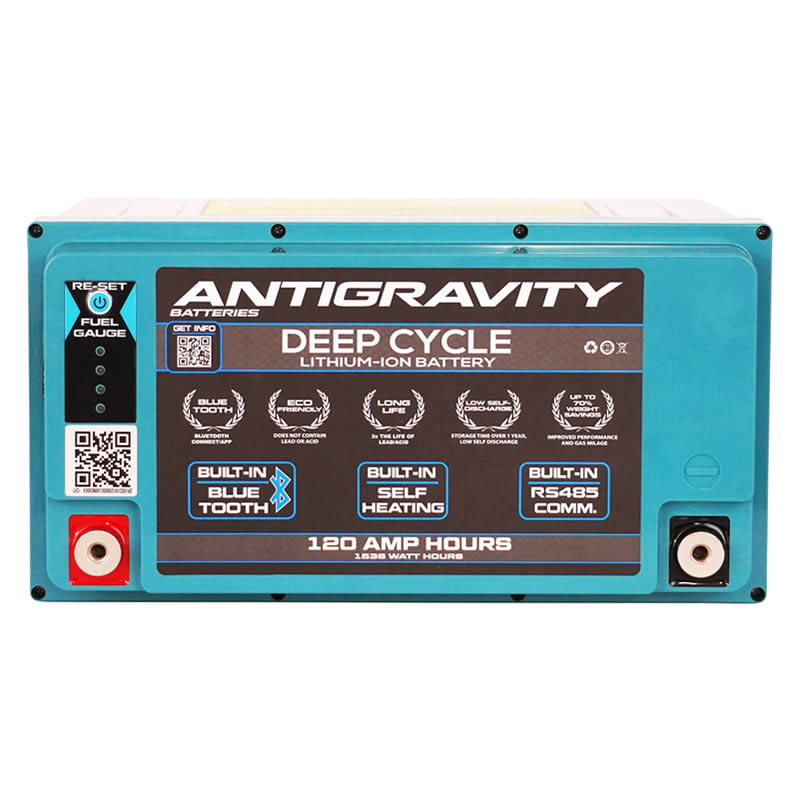

DC-120H Features
Bluetooth App Battery Monitoring:
Capacity Fuel Gauge
Highest Quality Components and Technology:
Ultra-Safe, Advanced Battery Management System:
Automatic Self-Heating Feature:
Battery Bank Versatility:
| 1 Series (12V) | 2 Series (24V) | 3 Series (36V) | 4 Series (48V) | |
| 1 Parallel (100Ah) | YES | YES | YES | YES |
| 2 Parallel (200Ah) | YES | YES | YES | YES |
| 3 Parallel (300Ah) | YES | YES | NO | NO |
| 4 Parallel (400Ah) | YES | YES | NO | NO |
DC-120H Benefits
- Ultra Lightweight: Lithium Iron Phosphate (LiFePO4) is 60% lighter than Lead/Acid.
- Longer Life: Lithium offers up to 4x the Lifespan of Lead/Acid Battery. 3000-5000 Cycles.
- 4x Faster Charging than Lead/Acid: Our Lithium battery can charge up to 4x faster than Lead/Acid Batteries. (Use the proper Lithium Charger to achieve this.)
- Low Self-Discharge: Lithium can hold a charge for much longer than Lead/Acid when no load is on the batteries. Just disconnect the batteries from a load for storage (check charge every 4 months if in storage; keep above 13v).
- Power Handling Ability: the Antigravity Deep Cycle Battery has the ability to handle much higher output Pulse or Rush Current than its competitors.
- More Usable Energy: Lithium has almost twice the energy compared to Lead/Acid. Meaning 100 Ah in a Lithium Battery can offer almost as much energy as two Lead/Acid batteries because Lead/Acid cannot be fully discharged and Lithium can. Our 120 Amp Hour DC120H offers twice the Energy available from a 100 Amp Hour Lead/Acid Battery and 20 Amp Hours more than most Lithium competitors!
- Space Savings: Being that Lithium has more Energy Density it can take up less space than Lead/Acid for the same Amp Hour Capacity, while reducing weight tremendously.
- Durability: Much more resilient to vibration, heat and cold than Lead/Acid. Excellent shock and vibration resistance; no liquids or acid inside to spill or drain out. Will not release dangerous Hydrogen while Charging and will not leak liquids that are damaging to your finish or chassis such as acid.
[/vc_toggle][vc_toggle title=”Built-in Battery Management Benefits” style=”simple” color=”black” size=”lg” custom_font_container=”tag:h2|font_size:18px|text_align:left|color:%231b1919″ custom_use_theme_fonts=”yes” use_custom_heading=”true” custom_el_class=”nomarbot” css=”.vc_custom_1665542206866{padding-bottom: 11px !important;}”]
- Full Battery Management System: Our superior on-board BMS protects against accidental damage to the battery and offers automatic Cell Balancing, making for an extra long life.
- Protection against Over-Discharge: This prevents the battery from being over-discharged which is the leading cause of damage to any battery be it Lead or Lithium.
- Protection against Over-Charge: Overcharging of the battery can damage the battery rapidly. Our Battery has protection from the cells getting damaged by over-charge.
- Protection against Overcurrent: This prevents the battery from putting out more than a safe current – excess current can overheat a battery.
- Short-Circuit Protections: This prevents the battery from Short-Circuiting and causing damage to itself or the User.
- Thermal Protections: Prevents charging if frozen or overheated.
[/vc_toggle][vc_toggle title=”Environmental Benefits” style=”simple” color=”black” size=”lg” custom_font_container=”tag:h2|font_size:18px|text_align:left|color:%231b1919″ custom_use_theme_fonts=”yes” use_custom_heading=”true” custom_el_class=”nomarbot” css=”.vc_custom_1612143188259{padding-bottom: 11px !important;}”]
- Non-Toxic: Lithium is less toxic, does not have Lead or Acid.
- Always remember to Recycle your batteries responsibly!
[/vc_toggle][vc_toggle title=”Safety Benefits” style=”simple” color=”black” size=”lg” custom_font_container=”tag:h2|font_size:18px|text_align:left|color:%231b1919″ custom_use_theme_fonts=”yes” use_custom_heading=”true” custom_el_class=”nomarbot” css=”.vc_custom_1612143182053{padding-bottom: 11px !important;}”]
- Short-Circuit Protections built into the battery.
- Protection Against Damage from over-charge and over-discharge.
- Does Not Release Hydrogen Gas when charging. Hydrogen gas is highly explosive.
[/vc_toggle][vc_toggle title=”Build Quality Benefits” style=”simple” color=”black” size=”lg” custom_font_container=”tag:h2|font_size:18px|text_align:left|color:%231b1919″ custom_use_theme_fonts=”yes” use_custom_heading=”true” custom_el_class=”nomarbot” css=”.vc_custom_1665542297386{padding-bottom: 11px !important;}”]
- UL Listed Cells: Antigravity Deep Cycle Batteries use the highest quality Lithium Ion cells (LiFePO4) that are UL and IEC Listed and are rated at 4000-5000 cycles.
- Integrated Bluetooth Monitoring: Antigravity Lithium Deep Cycle Batteries have exclusive Bluetooth technology that allows you to track your battery status and condition using our free App (available on Apple or Android).
[/vc_toggle][vc_toggle title=”Cost Benefits” style=”simple” color=”black” size=”lg” custom_font_container=”tag:h2|font_size:18px|text_align:left|color:%231b1919″ custom_use_theme_fonts=”yes” use_custom_heading=”true” custom_el_class=”nomarbot” css=”.vc_custom_1665542394088{padding-bottom: 11px !important;}”]
- Long-Term Value: Lithium has a higher up-front cost but in the long run will have a much longer life than Lead/Acid therefore be more economical and save you money over the life of the product. Our batteries also offer several benefits such as the light weight, increased efficiency, built-in Battery Management Protection System, less maintenance, much faster charging and much better performance overall.
- Extended Battery Life: Antigravity Lithium Deep Cycle Batteries offer the latest technology for the safest, longest life cycle possible – up to 4X the lifespan of lead/acid. Ours have a full BMS for protecting the battery from over-discharge and over-charge, and preventing it from being damaged.
[/vc_toggle][vc_btn title=”LEARN MORE” style=”outline” shape=”square” color=”peacoc” size=”lg” align=”center” css=”.vc_custom_1613967064746{margin-top: 35px !important;}” link=”url:https%3A%2F%2Fantigravitybatteries.com%2Flithium-deep-cycle-benefits%2F|title:Benefits%20of%20Lithium%20Deep%20Cycle%20Batteries||”][vc_column_text el_class=”text-center”]Benefits of Lithium Deep Cycle Batteries[/vc_column_text][/vc_column][/vc_row][vc_row full_width=”stretch_row” css=”.vc_custom_1666577351272{padding-bottom: 60px !important;background-color: #ffffff !important;}” el_id=”120h-bluetooth”][vc_column]
Bluetooth Tracking
Each Antigravity Deep Cycle Battery has a Serial Number that you can put into the Bluetooth App to track it. It’s that simple. The App has robust features so you can always know what’s going on with your battery or battery bank. No need for a multimeter or voltage tester.[/vc_column_text][vc_toggle title=”Bluetooth App Features” style=”simple” color=”black” size=”lg” custom_font_container=”tag:h2|font_size:18px|text_align:left|color:%231b1919″ custom_use_theme_fonts=”yes” use_custom_heading=”true” custom_el_class=”nomarbot” css=”.vc_custom_1666577559038{padding-bottom: 11px !important;}”]
- Name each battery that you monitor with its own name (i.e “Battery 1” or “Main Battery Bank”).
- Monitor up to four batteries in the app. (You can only view one battery at a time, but if connected in Series or Parallel you will only need to monitor one battery since all the batteries are equalized to each other.)
- Monitor the Real-Time Voltage of the battery.
- Monitor the Current/Amps going into or out of the battery in Real-Time.
- Monitor the Watt Output of the battery (Power).
- Monitor the State of Charge Percent (SOC).
- View the Status of the battery, such as Charging, Discharging or Standby.
- View the interior Temperature of the battery (Celsius).
- View the individual Cell Voltages.
- View the number of Cycles the battery has been subject to (potentially).
NOTE: Only one Apple/Android device at a time can be connected to each battery.[/vc_toggle][vc_single_image image=”137622″ img_size=”full” alignment=”center” el_class=”nomarbot”][/vc_column][/vc_row][vc_row css=”.vc_custom_1666577576034{margin-bottom: 42px !important;}” el_id=”120h-specs”][vc_column]
DC-120H Specs
- 12.8V
- 120+ Amp Hours
- 1536 Watt Hours
- Lithium-Iron Phosphate, cell is UL1642, IEC62619 Certified
Dimensions / Weight:
- 12.5 x 6.5 x 9.375 inches (324 x 175 x 190 mm)
- 30.4 lbs (13.8kg)
[/vc_column_text][vc_toggle title=”MORE SPECS” style=”simple” color=”black” size=”lg” custom_font_container=”tag:h2|font_size:18px|text_align:left|color:%231b1919″ custom_use_theme_fonts=”yes” use_custom_heading=”true” custom_el_class=”nomarbot” css=”.vc_custom_1668530064525{padding-bottom: 11px !important;}”]Terminal Threads:
- M8 x 10mm deep
Continuous Charge Rate:
- Recommended 20-60Amps (higher amps equates to faster Charging)
- Do not exceed 60 Amp Charging or Charge beyond indicated Temps
Continuous Discharge Rates:
- 100 Amps Continuous*
- 150 Amps for 1-2 minutes
- 350 Amps for 4 seconds
- *Max 200A Continuous if more than two batteries connected in Parallel
- Beyond these rates the BMS Protections will activate
Safe Operating Temperatures:
- Charging: 32°F ~ 113°F (0 ~ 45°C)
- Discharging: -4°F ~ 131°F (-20°C ~ 55°C)
Bluetooth Communication:
- Version 4.0
- Downloadable Free App for Android or Apple
Self Power Consumption when not connected and dormant:
- 0.8 milliamp
- If not connected to any load, recharge battery every 4-6 months
Battery Management System (BMS):
- Full BMS protections built-in with Cell Balancing
- Battery Cells are UL1642 and IEC62619 Certified
Self-Heating Feature:
- Automatic Operation if the battery is connected to a Charger or Shore Power (the reason for this is because the battery would drain itself quickly if the heating element was turned on without any power to assist it)
- Heating Element activates automatically when it senses battery’s internal temperature is 32°F (0°C). This does not mean the battery will self-heat when the exterior ambient temperature is 0°C because it takes longer for its internal temperature to reach the freezing point
[/vc_toggle][/vc_column][/vc_row][vc_row full_width=”stretch_row” css=”.vc_custom_1667171415329{background-color: #ffffff !important;}”][vc_column]
Compare
DC-120H, 125, 200H and 300H Comparison
Our Lithium Deep Cycle (DC) models are ultra lightweight replacements for lead/acid deep cycle batteries that are standard throughout the RV industry and in solar setups, etc. All of our batteries use top-of-the-line Premium UL and EIC Listed Lithium Cells that are UN38.3 Certified for transportation. Our batteries range from 120 to 300 Amp Hour models, and offer leading-edge technology you will not find on other brands. For example all Antigravity Deep Cycle models offer full Battery Management Protections Systems for the safest operation and longest life possible, plus real-time Bluetooth Monitoring from your phone or other Android and Apple devices. Additionally, all Antigravity Deep Cycle Batteries have RS-485 communication ports that will be able to report the status of the batteries to onboard communications systems as this technology gets more standardized and prevalent in the RV Industry.
What separates these four Antigravity models is the amount of Capacity and thus the physical size of the battery. Another difference is that the DC-125 model does not have Self-Heating built-in, while all other models do (“H” models).[/vc_column_text][/vc_column][/vc_row][vc_row full_width=”stretch_row_content” css=”.vc_custom_1667171107521{background-color: #ffffff !important;}”][vc_column css=”.vc_custom_1615004004165{margin-bottom: 42px !important;}”]
Compare Antigravity Deep Cycle models (on mobile, swipe to see all specs)
| Model | Price | Amp Hours | Size | Weight | Bluetooth App | Full BMS | Fuel Gauge | Self Heating |
| AG-DC-125 | $594 | 125 | 12.5” x 6.5” x 9.375” | 34.1 lbs | Yes | Yes | Yes | No |
| AG-DC-200H | $949 | 200 | 20” x 6.875” x 10” | 55.5 lbs | Yes | Yes | Yes | Yes |
| AG-DC-300H | $1,399 | 300 | 20.75” x 11” x 9.25” | 84.4 lbs | Yes | Yes | Yes | Yes |
