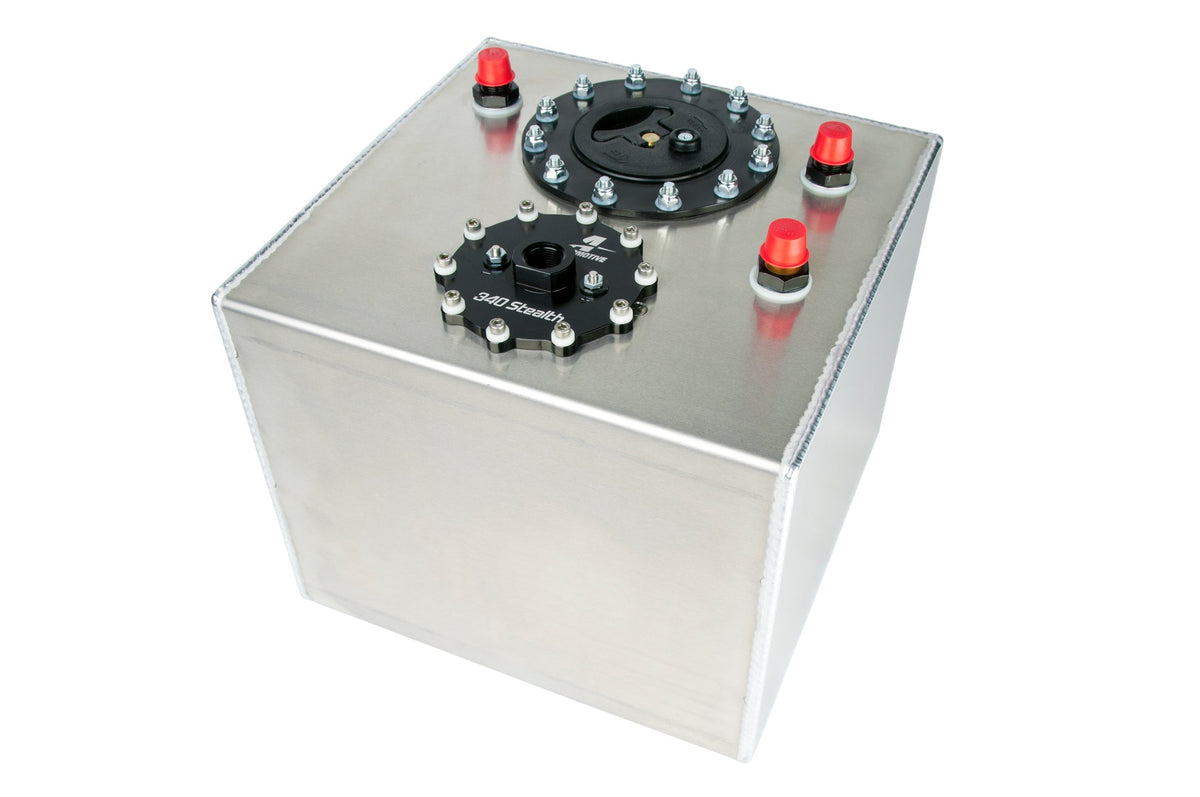

Fuel Cell with Integrated 340 LPH In-Tank Fuel Pump Module and Pre-Pump Fuel Filter

Street/Strip Fuel Cell with 340 Stealth Pump, aircraft filler cap, AN-08 ORB outlet port, AN-08 male flare baffled return and dual, roll-over protected AN-08 vents.

• Stealth 340 Fuel Pump


• 6, 15 or 20 Gallon Capacity


• Baffled design keeps fuel at the pump inlet


• AN-08 ORB Outlet Port


• AN-08 Male Return Line Provision


• (2) AN-08 Male Vents with Rollover Valves


• Standard 12-Bolt Flush Mount Lid Assembly


• Integrated 0-90-ohm fuel level sending unit


• Natural Aluminum Finish


• Supports up to:
  • EFI - 700hp Forced Induction
  • EFI - 850hp Naturally Aspirated
  • Carbureted - 850hp Forced Induction
  • Carbureted - 1000hp Naturally Aspirated


• Dimensions:
  • 6 Gallon: 12" L x 12" W x 10" H
  • 15 Gallon: 18" L x 20" W x 10" H
  • 20 Gallon: 24" L x 20" W x 10"

This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
