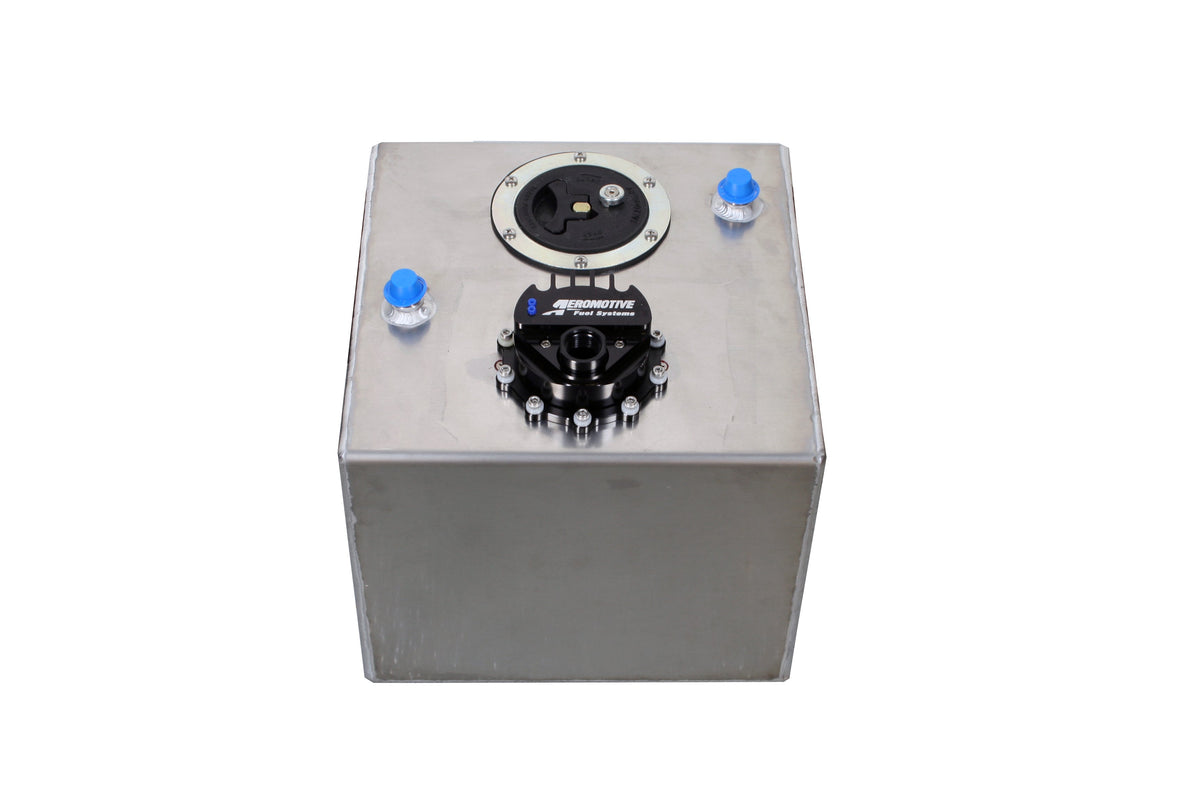

Fuel Cell with Integrated Brushless Eliminator Fuel Pump Module and Pre-Pump Fuel Filter

Racing Fuel Cell with Stealth Eliminator Brushless Pump, aircraft filler cap, ORB-10 outlet, AN-08 baffled return and roll-over protected AN-08 vent.  This is the same fuel cell design used in the Ford Cobra Jet, Chevy COPO Camaro and MOPAR Drag Pack cars.

• Baffled design keeps fuel at the pump inlet


• Fluted pickup with integrated 100-m prefilter


• The Eliminator performance you expect and more:


  • Fuel Injected Engines: GAS
    up to 1900 FWHP - naturally aspirated
    up to 1400 FWHP - forced air induction


  • Carbureted Engines: GAS
    up to 2300 FWHP - naturally aspirated
    up to 1700 FWHP - forced air induction


  • Fuel Injected Engines: E85
    up to 1330 FWHP – naturally aspirated
    up to 980 FWHP – forced air induction


  • Carbureted Engines: E85
    up to 1610 FWHP – naturally aspirated
    up to 1190 FWHP – forced air induction


• Lighter than the traditional Eliminator pump.


• Reduced current draw at higher, EFI pressures.


• Extended service life in methanol and ethanol.


• Integral, external brushless controller for clean installation, cooler fuel and enhanced reliability.


• Quieter than the traditional Eliminator pump.


• ORB-10 outlet port.


• Requires straight 12-VDC to 16-VDC power supply.

  • Aeromotive Brushless pumps are not designed for use with 16v charging systems, typically operating in the 16-18v range.  If you are running a 16v charging system, the use of a voltage regulator or step down to typical 12v charging system voltages will be necessary.


• Not compatible with pulse modulated systems or fuel pump speed controllers.


• Fuel Cell Dimensions:
  • 6 Gallon: 12" W x 12" L x 10" H
  • 15 Gallon: 20" W x 18" L x 10" H
  • 20 Gallon: 20" W x 24" L x 10" H

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

Carb Rated Flow of 1,300 lbs./hr. @ 9 psi, 13.5 volts
EFI Rated flow of 1,000 lbs./hr. @ 45 psi, 13.5 volts
