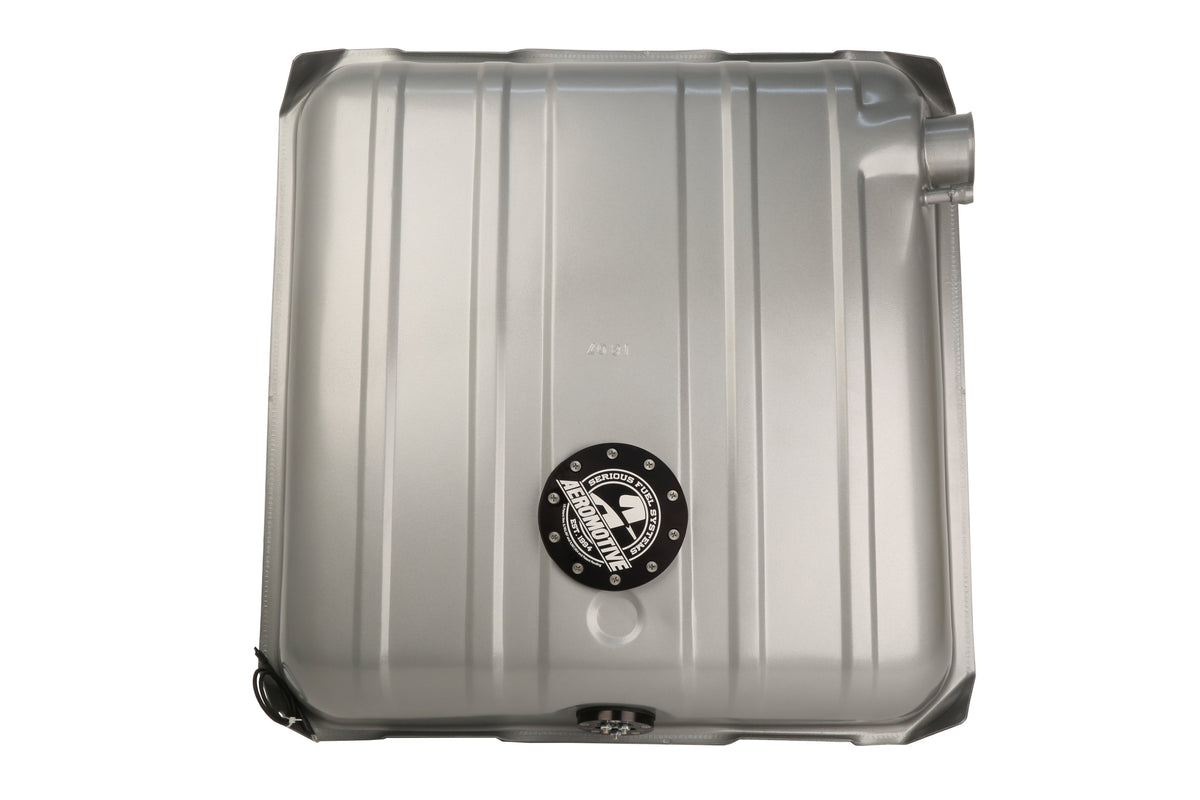

Gen II Stealth Fuel Tank, 55-57 Chevy

P/N 18199: '55-'57 Chevy Trifive
With Stealth 200 pump and 0-30 ohm sending unit

• Perfect for EFI and carbureted engines


• OEM appearance and 16-gallon capacity


• High flow, quiet 200 or 340 Stealth fuel pump


• 0-30 Ohm fuel level sending unit included

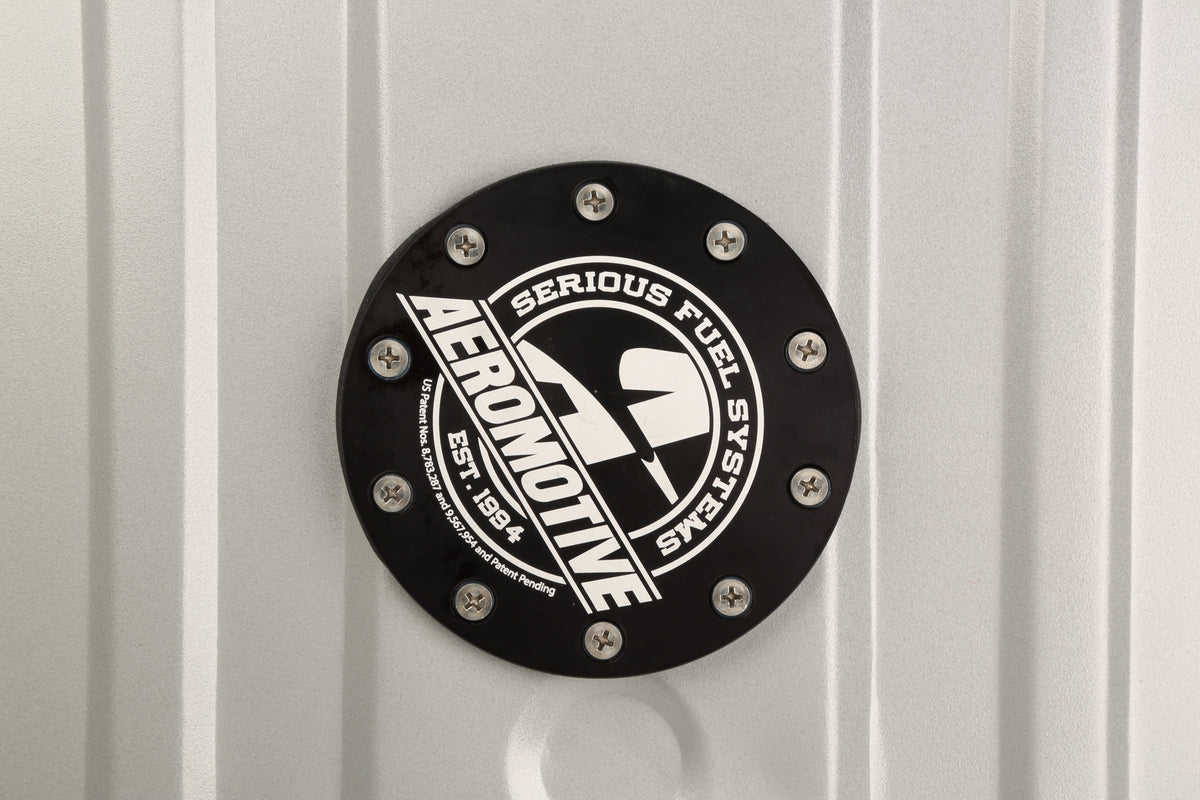

• Billet hat with 1/8" NPT outlet and return ports


• Please note: Adapter, Long, AN*06 Flare to 1/8-MNPT x 1-3/8 (Part Number #15777) is required for using this fuel tank. Please add it separately to your order.


• Utilizes OEM fuel outlet location and seal


• Featuring patented, award-winning Phantom Baffle technology for superior fuel slosh control


• Plug-and-play; comes pre-assembled with pump and sending unit in the tank, ready for install


• Utilizes stock mounting straps, filler cap and vent


• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

P/N 18199 - 200lph Stealth Gen II Tank Application Specs:

• Fuel Injected Engines (gasoline):


  • Up to 600 HP – naturally aspirated.


  • Up to 450 HP – forced air induction.


• Carbureted Engines (gasoline):


  • Up to 750 HP – naturally aspirated.


  • Up to 600 HP – forced air induction.

P/N 18499 - 340lph Stealth Gen II Tank Application Specs:

• Fuel Injected Engines:


  • Gasoline: up to 850 HP – naturally aspirated.


  • Gasoline: up to 700 HP – forced air induction.


  • E85: up to 595 HP – naturally aspirated.


  • E85: up to 490 HP – forced air induction.


• Carbureted Engines:


  • Gasoline: up to 1000 HP – naturally aspirated.


  • Gasoline: up to 850 HP – forced air induction.


  • E85: up to 700 HP – naturally aspirated.


  • E85: up to 595 HP – forced air induction.

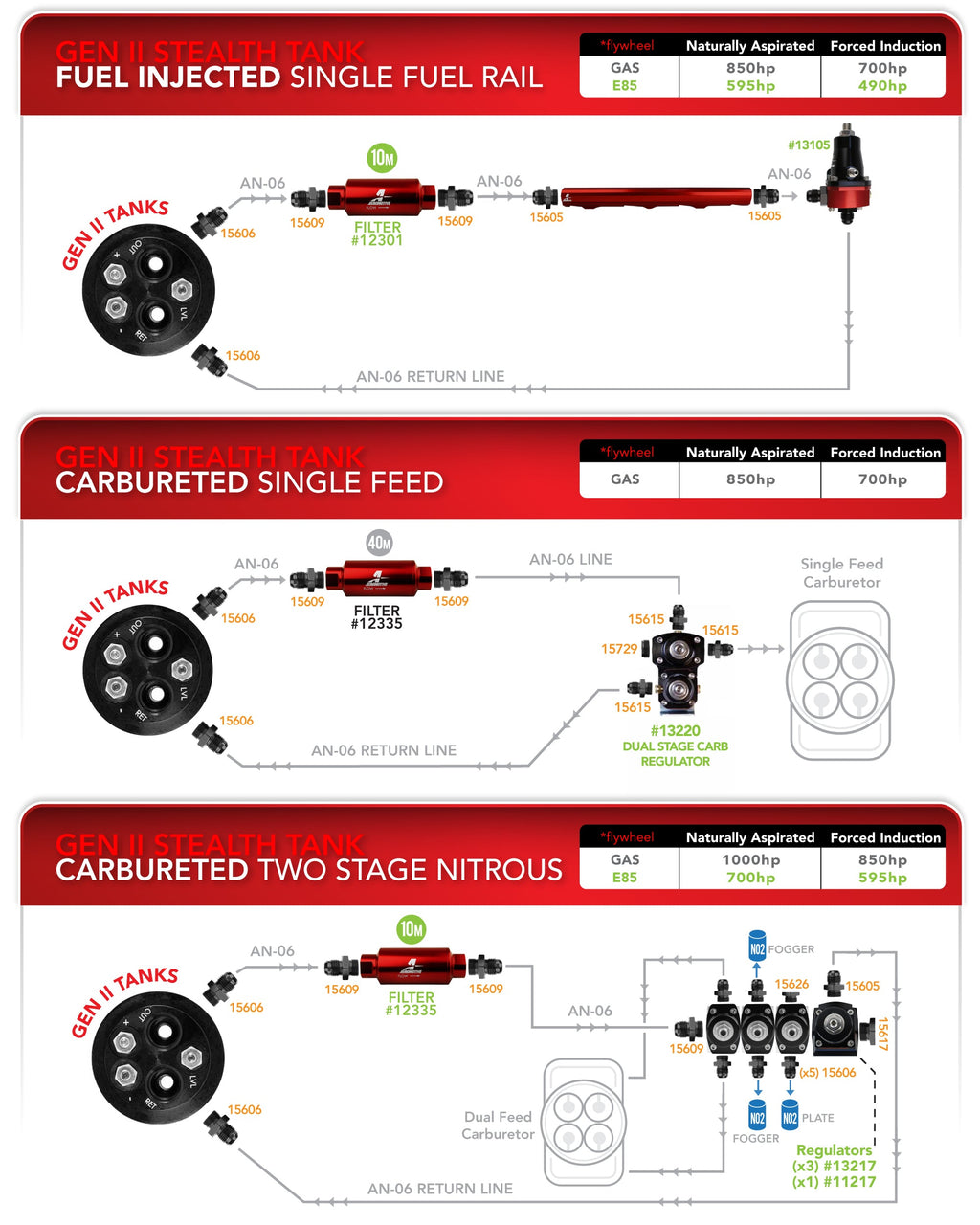

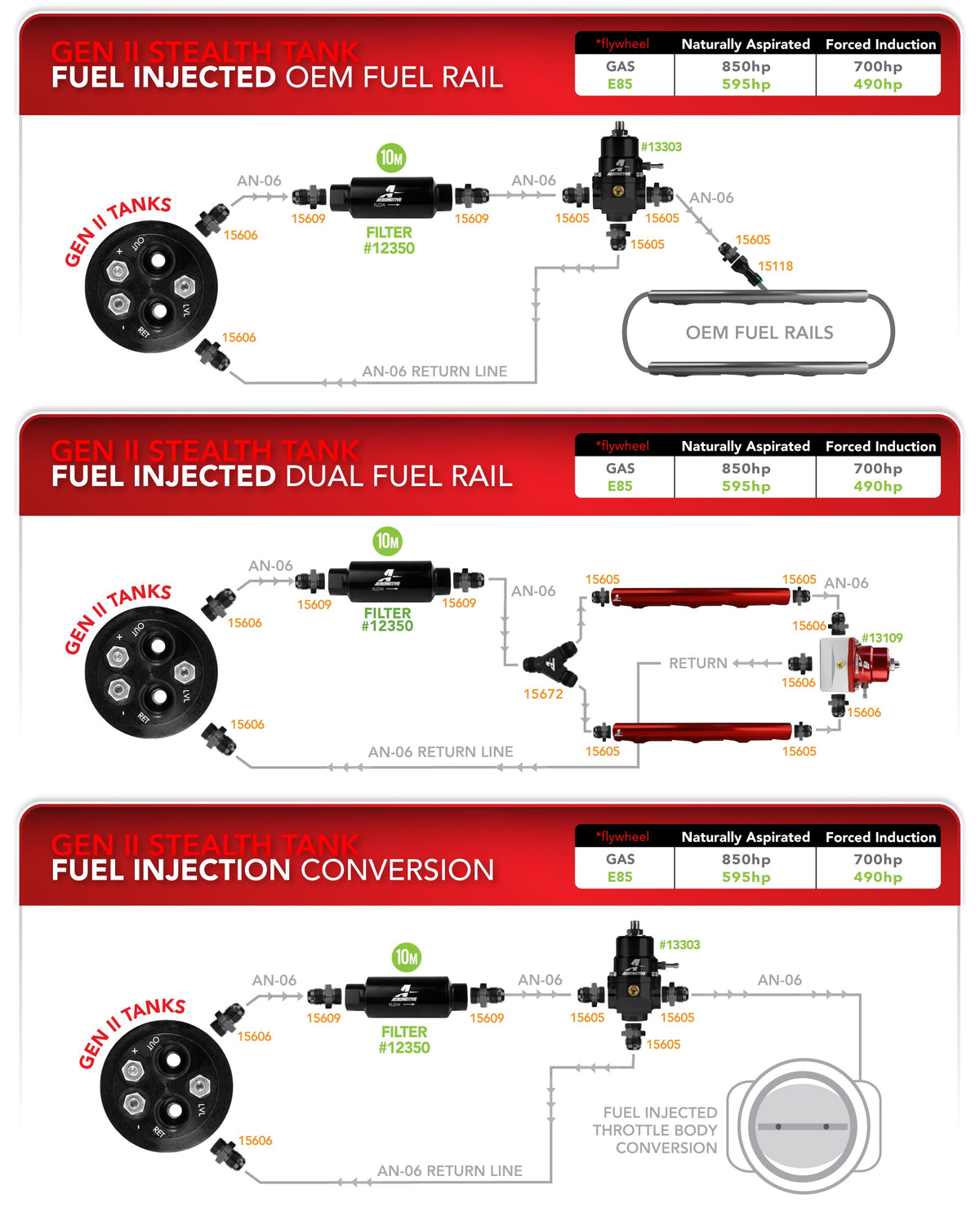

GEN II Stealth Tank Diagrams – Click Here
