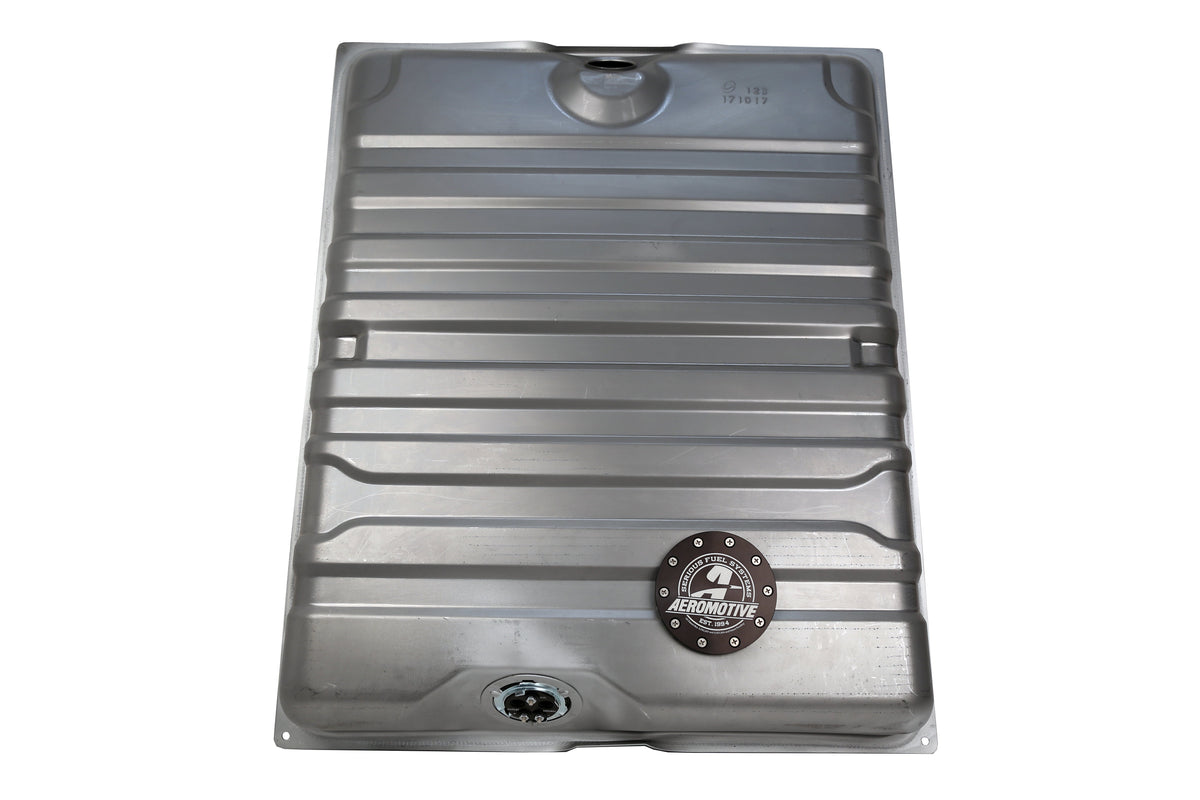

P/N 18163: Gen II Stealth Fuel Tank 64-65 Polara
With Stealth 200 pump

• OEM style tank, fully assembled.


• 15-Gallon Capacity.


• Fuel level sending unit 73-10 ohm.


• Complete with new tank, fuel pump, fuel sock.


• Phantom baffle assembly built-in.


• AN-06 O-ring Inlet/outlet ports in factory stock location.


• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.

P/N 18163 - 200lph Stealth Gen II Tank Application Specs:

• Fuel Injected Engines (gasoline):



  • Up to 600 HP – naturally aspirated.


  • Up to 450 HP – forced air induction.






• Carbureted Engines (gasoline):



  • Up to 750 HP – naturally aspirated.


  • Up to 600 HP – forced air induction.





P/N 18463 - 340lph Stealth Gen II Tank Application Specs:

• Fuel Injected Engines:



  • Gasoline: up to 850 HP – naturally aspirated.


  • Gasoline: up to 700 HP – forced air induction.


  • E85: up to 595 HP – naturally aspirated.


  • E85: up to 490 HP – forced air induction.






• Carbureted Engines:



  • Gasoline: up to 1000 HP – naturally aspirated.


  • Gasoline: up to 850 HP – forced air induction.


  • E85: up to 700 HP – naturally aspirated.


  • E85: up to 595 HP – forced air induction.





P/N 18863 – 525lph Hellcat Stealth Gen II Tank Application Specs:

• Fuel Injected Engines:



  • Gasoline: up to 1200 HP – naturally aspirated.


  • Gasoline: up to 900 HP – forced air induction.


  • E85: up to 810 HP – naturally aspirated.


  • E85: up to 600 HP – forced air induction.






• Carbureted Engines:



  • Gasoline: up to 1400 HP – naturally aspirated.


  • Gasoline: up to 1100 HP – forced air induction.


  • E85: up to 950 HP – naturally aspirated.


  • E85: up to 740 HP – forced air induction.

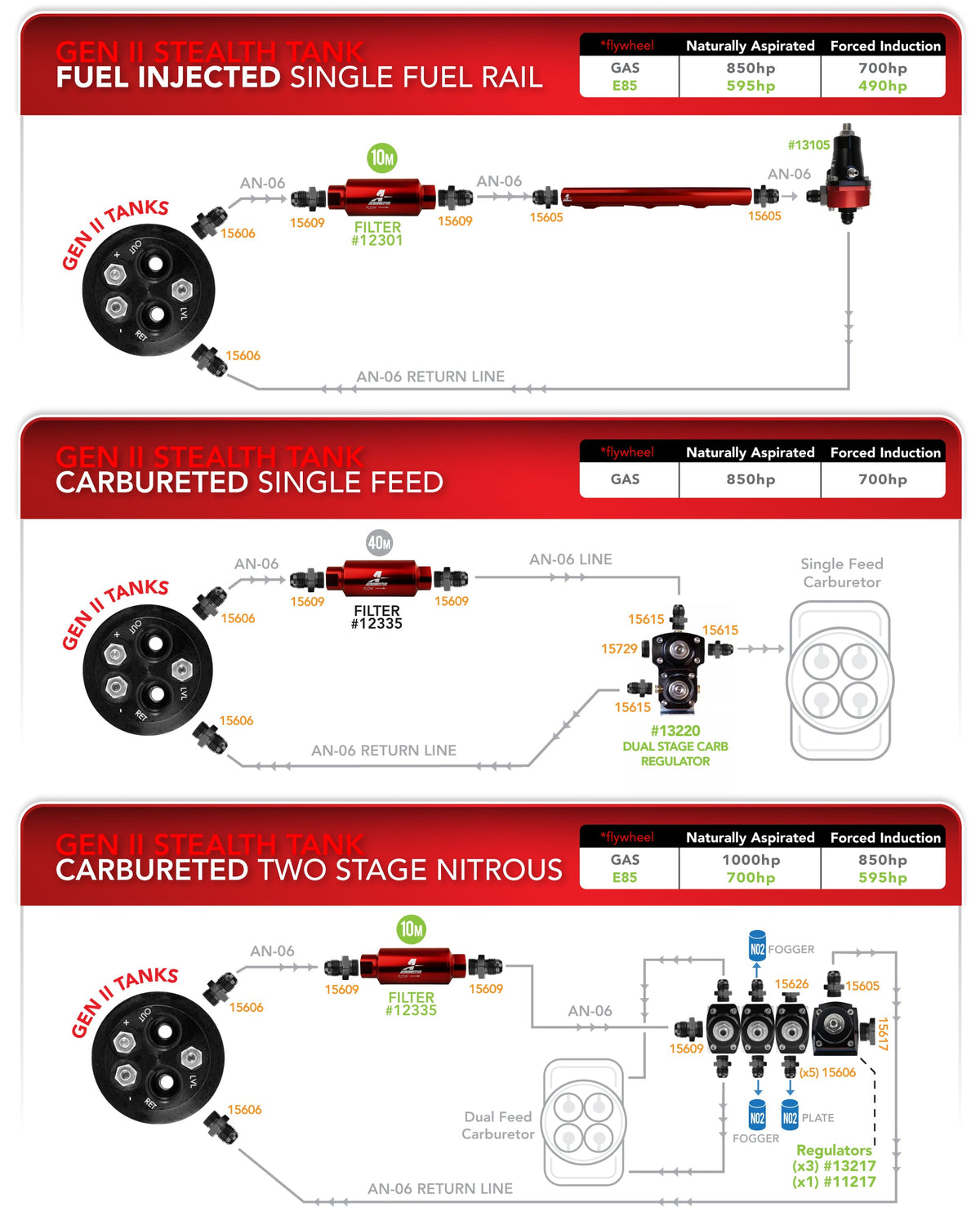

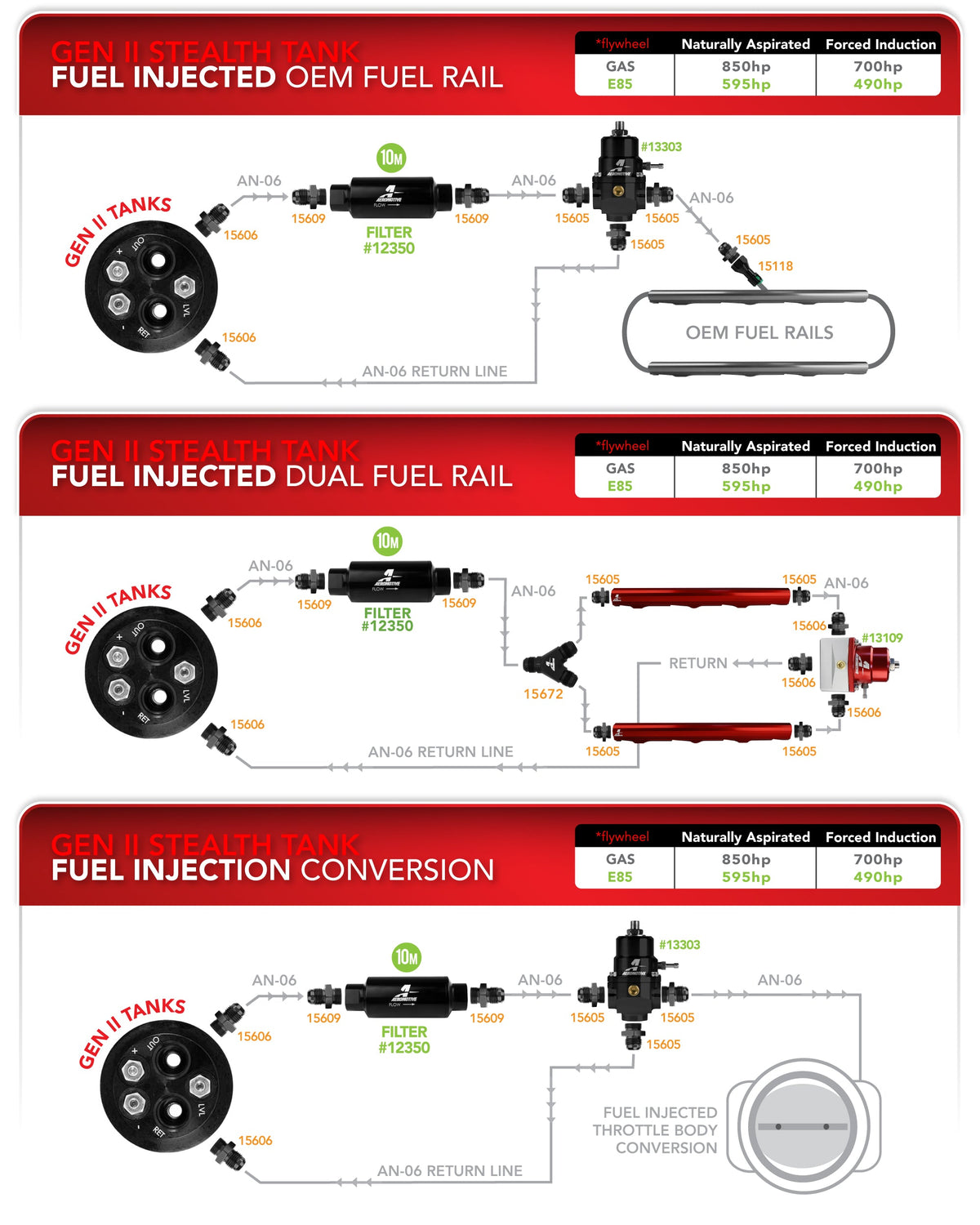

GEN II Stealth Tank Diagrams - Click Here
