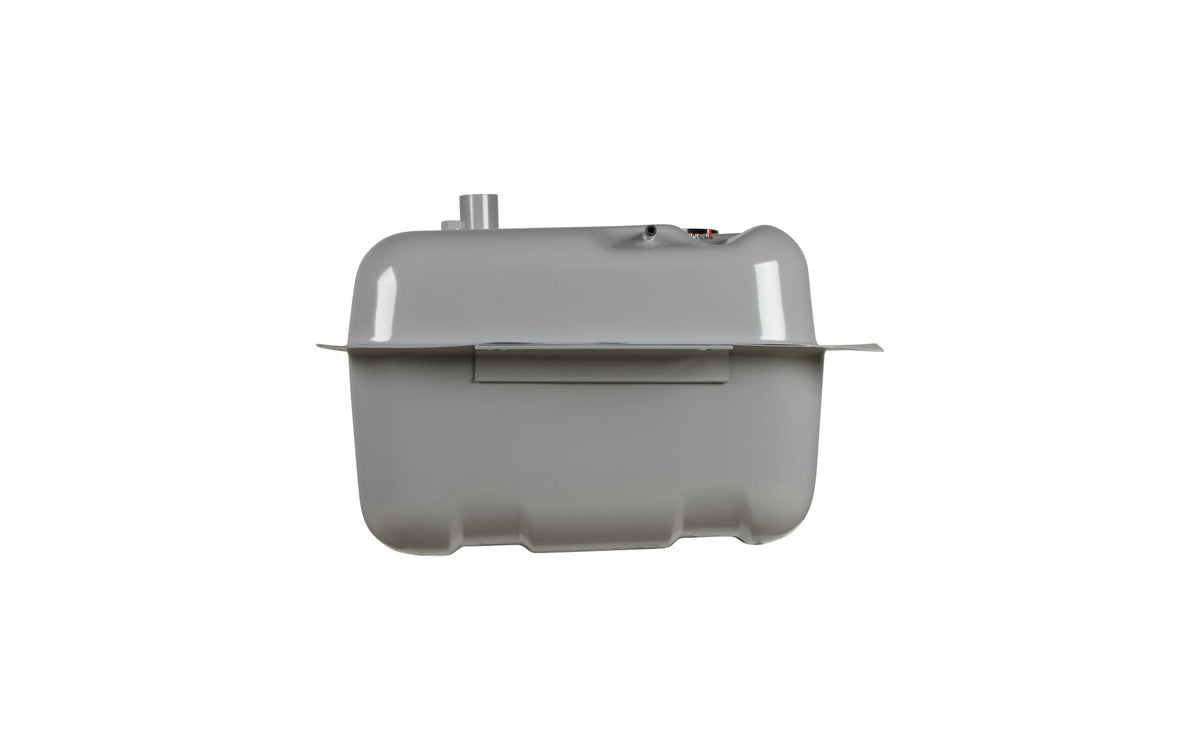

Gen II Stealth Fuel Tank, 67-72 C10
200 lph
$1,093.43
Skip to product information
P/N 18110: '67-'72 C10
With Stealth 200 pump and 0-90 ohm sending unit
P/N 18410: '67-'72 C10
With Stealth 340 pump and 0-90 ohm sending unit
P/N 18810: '67-'72 C10
With Stealth 450 pump and 0-90 ohm sending unit
P/N 18110 - 200lph Stealth Gen II Tank Application Specs:
P/N 18410 - 340lph Stealth Gen II Tank Application Specs:
P/N 18810 - 450lph Stealth Gen II Tank Application Specs:

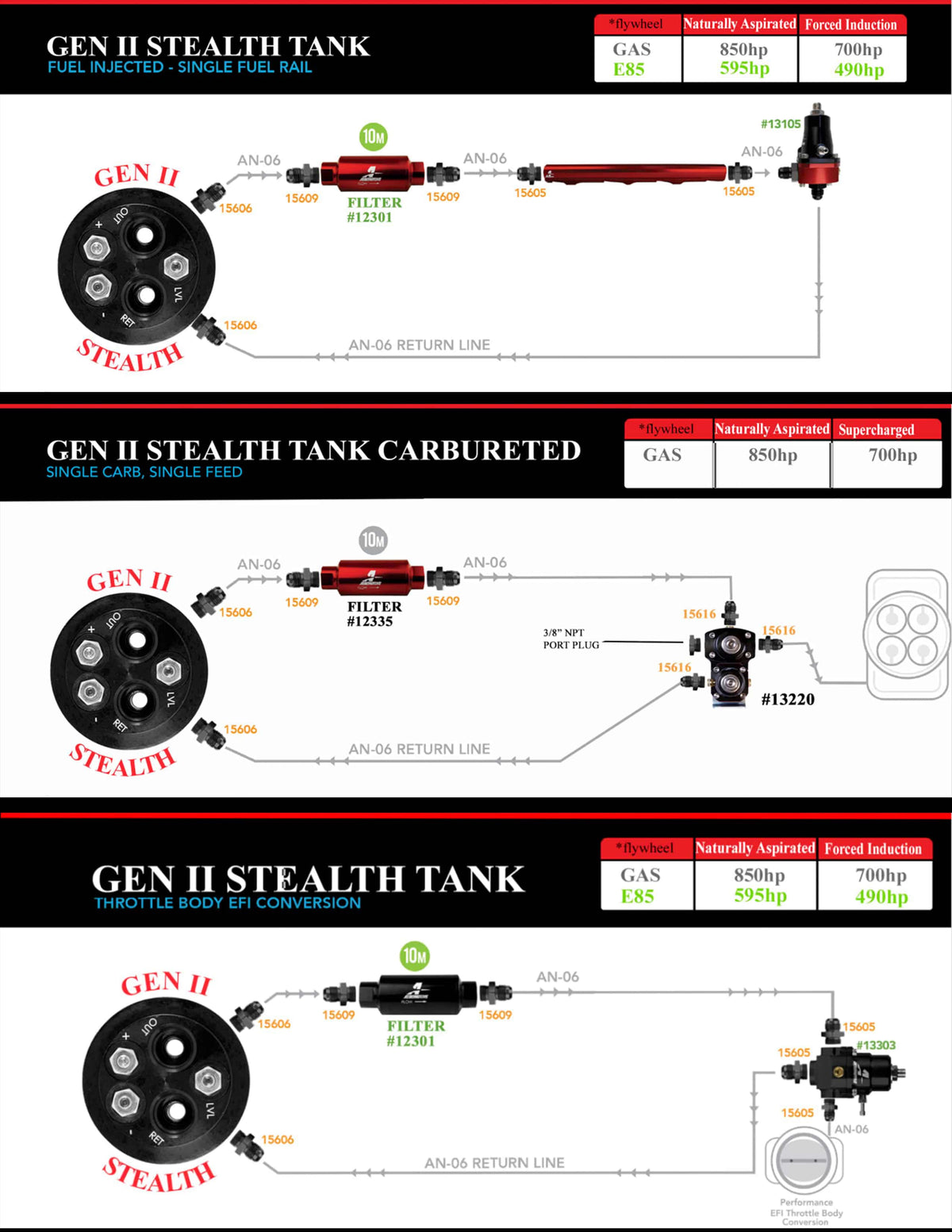

GEN II Stealth Tank Diagrams – Click Here
Gen II Stealth Fuel Tank, 67-72 C10
$1,093.43
18110
With Stealth 200 pump and 0-90 ohm sending unit
P/N 18410: '67-'72 C10
With Stealth 340 pump and 0-90 ohm sending unit
P/N 18810: '67-'72 C10
With Stealth 450 pump and 0-90 ohm sending unit

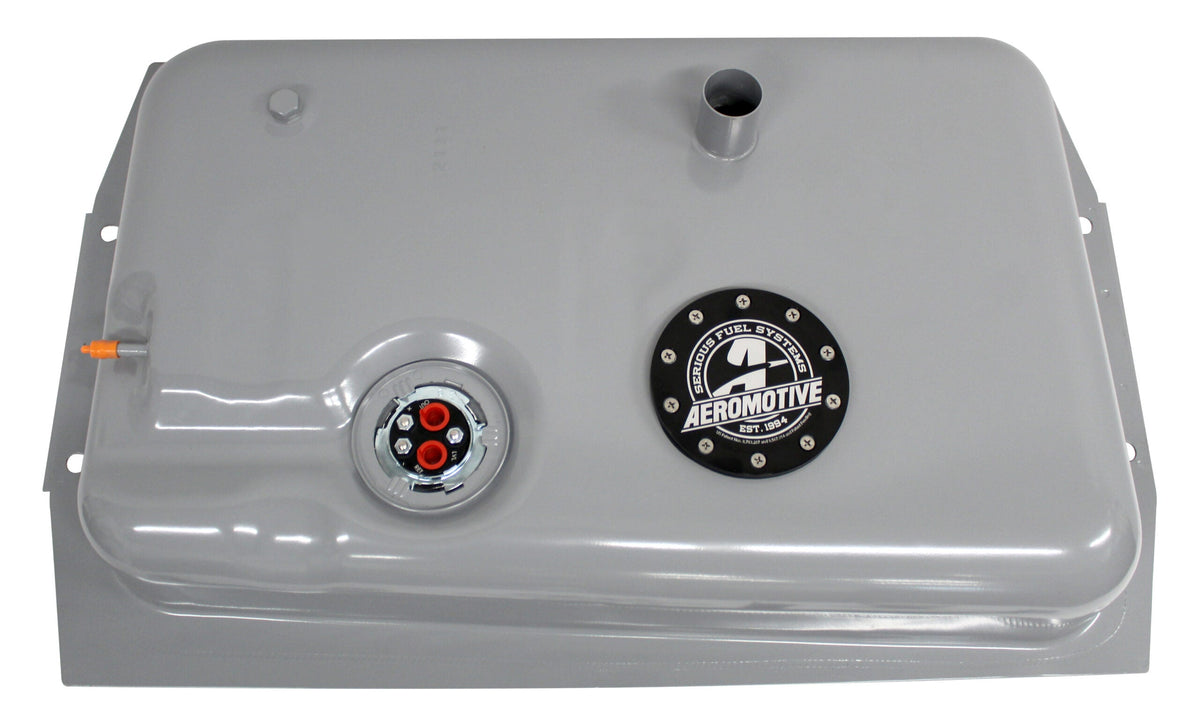

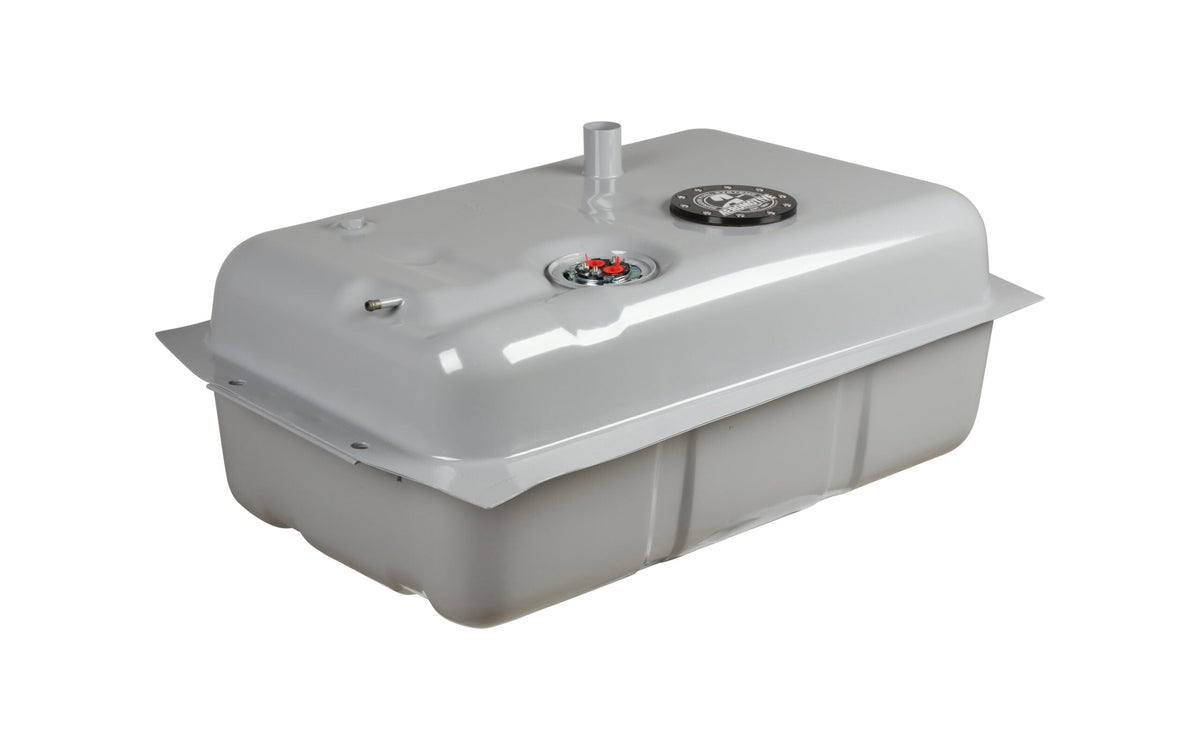

- Rear Mount Fuel Tank (Behind Rear Axle) Replaces OEM In-Cab Fuel Tank
- Available in 3 different pump options – 200 LPH, 340 LPH, 450 LPH

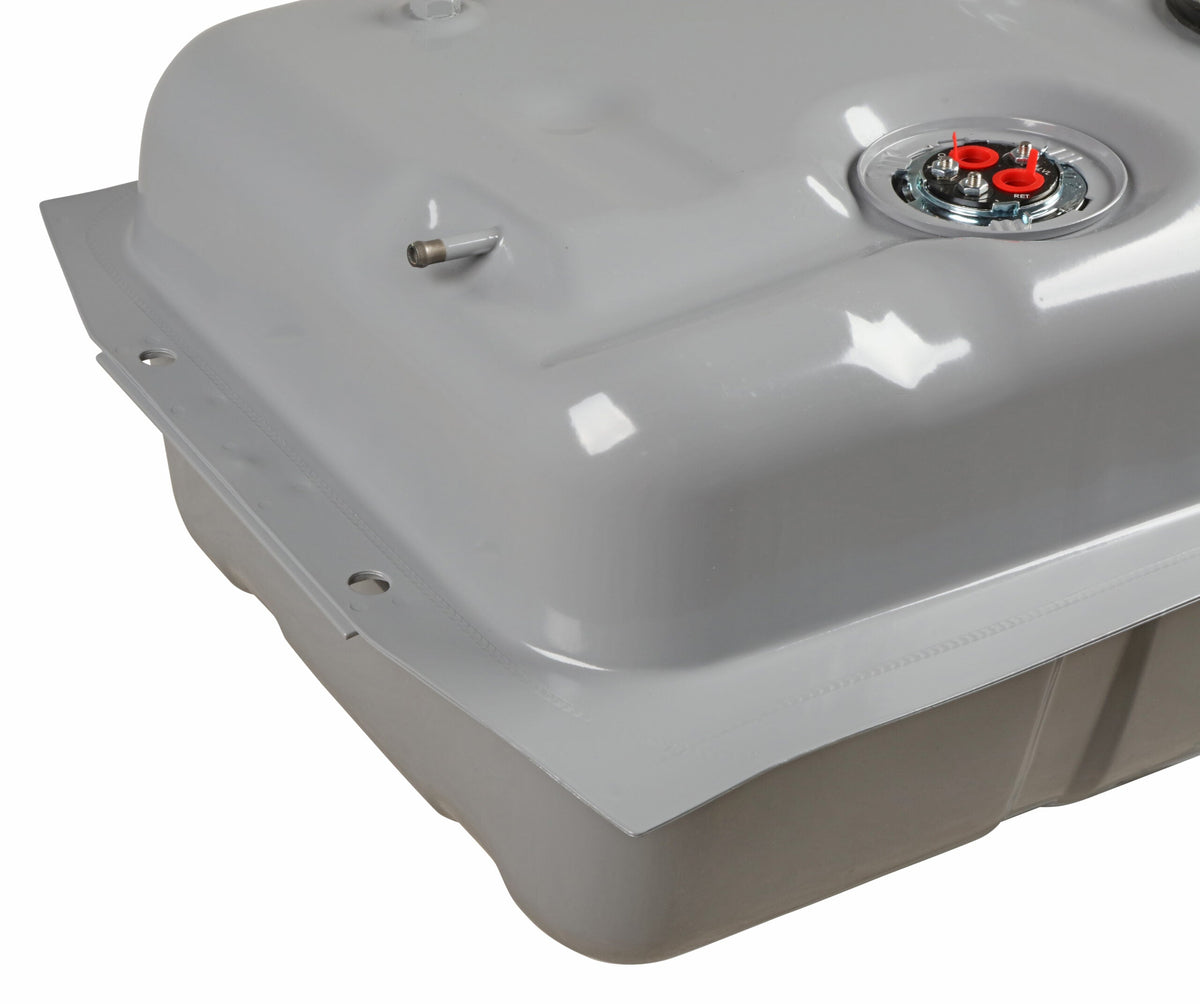

- Painted steel tank comes fully assembled
- Easy installation process requires drilling only – no frame rail cutting

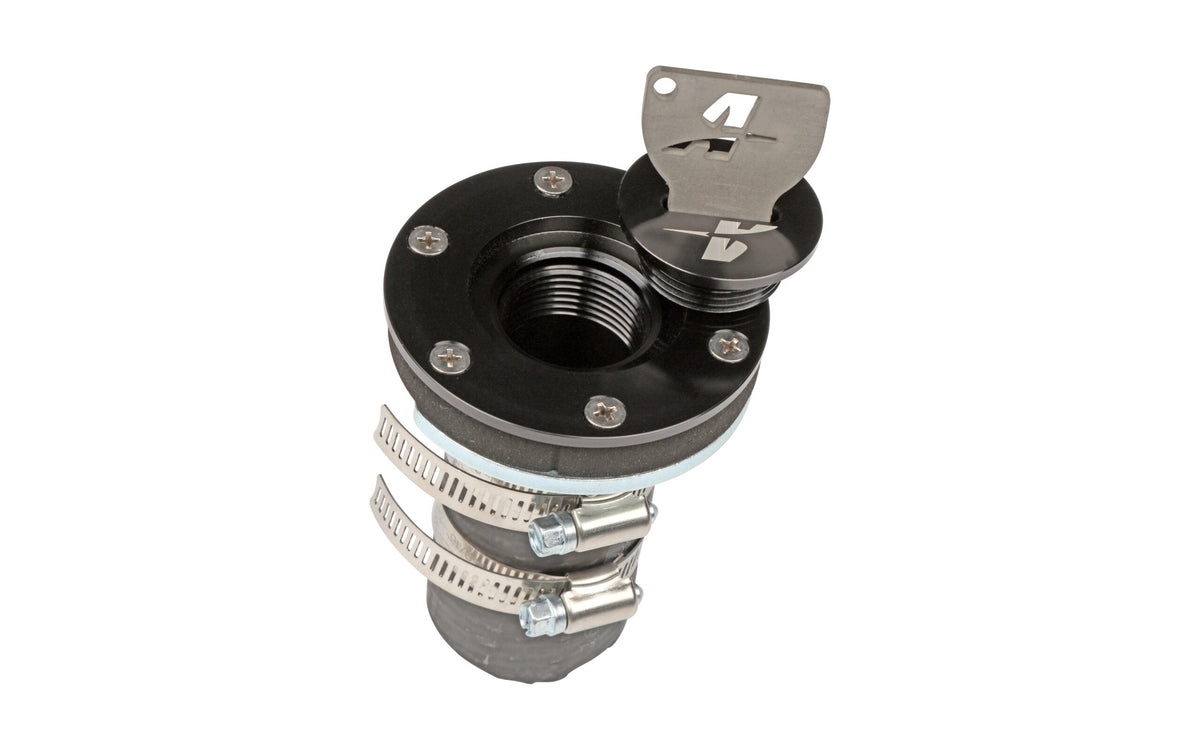

- Includes comprehensive installation kit – bed fuel filler cap assembly, frame rail/bed floor drill guides, and hardware
- 17 gallon fuel tank capacity

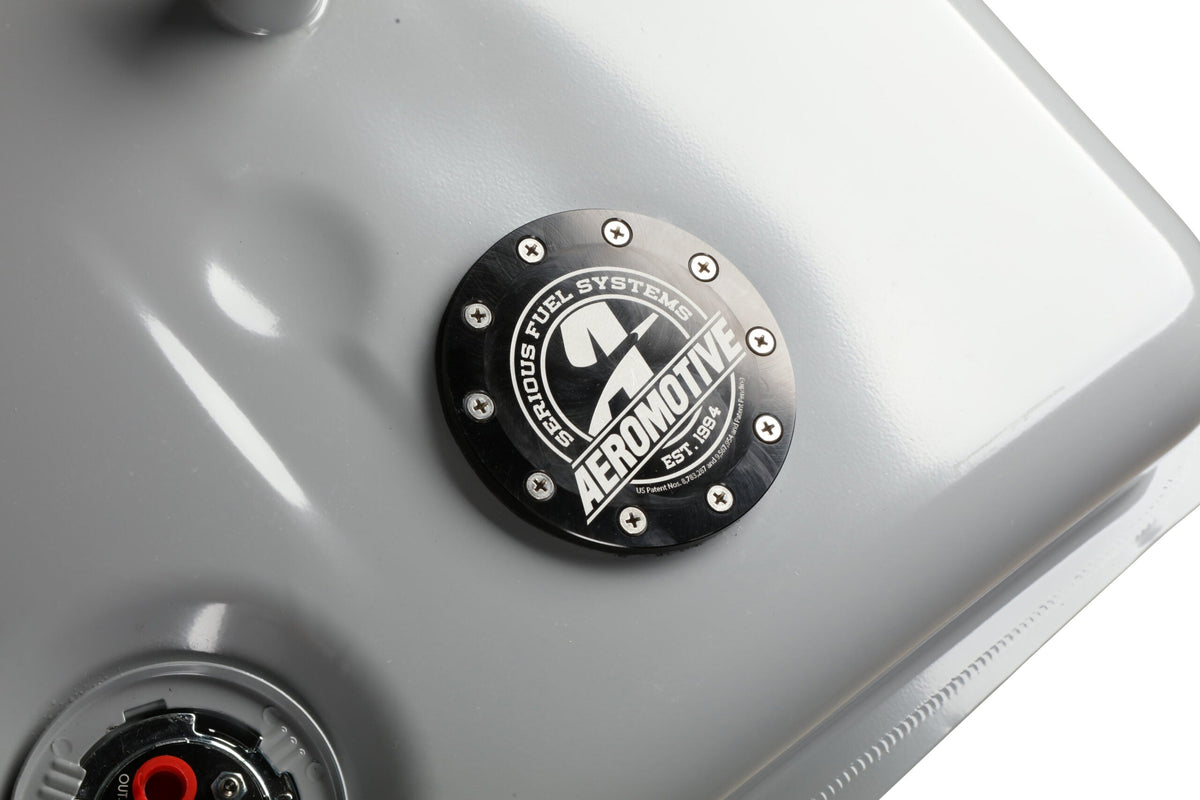

- Includes Aeromotive Patented Foam and Basket Assembly/Gen II Tank Technology to control fuel slosh and pump flooded
- 0-90 Ohm sending unit installed

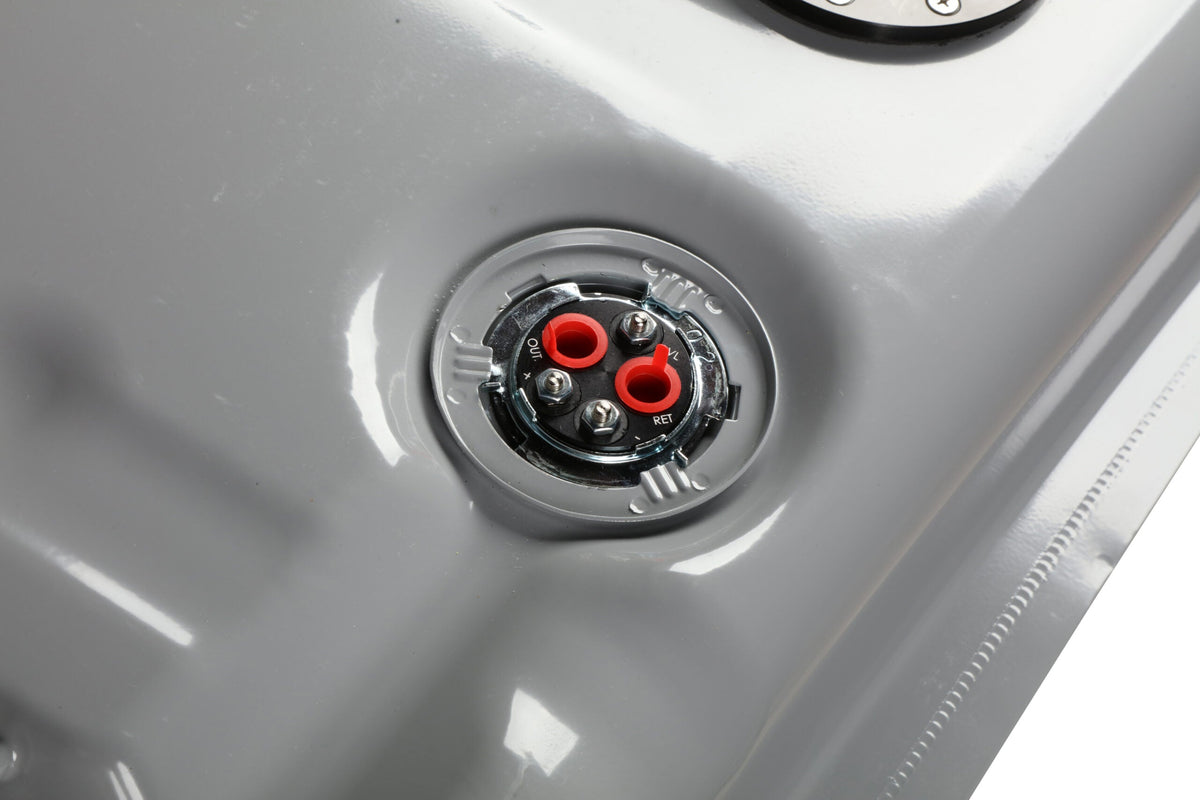

- -06 ORB outlet and return ports
P/N 18110 - 200lph Stealth Gen II Tank Application Specs:
-
Fuel Injected Engines (gasoline):
- Up to 600 HP – naturally aspirated.
- Up to 450 HP – forced air induction.
-
Carbureted Engines (gasoline):
- Up to 750 HP – naturally aspirated.
- Up to 600 HP – forced air induction.
P/N 18410 - 340lph Stealth Gen II Tank Application Specs:
-
Fuel Injected Engines
- Gasoline: up to 850 HP – naturally aspirated.
- Gasoline: up to 700 HP – forced air induction.
- E85: up to 595 HP – naturally aspirated.
- E85: up to 490 HP – forced air induction.
-
Carbureted Engines:
- Gasoline: up to 1000 HP – naturally aspirated.
- Gasoline: up to 850 HP – forced air induction.
- E85: up to 700 HP – naturally aspirated.
- E85: up to 595 HP – forced air induction.
P/N 18810 - 450lph Stealth Gen II Tank Application Specs:
-
Fuel Injected Engines:
- Gasoline: up to 1100 HP – naturally aspirated.
- Gasoline: up to 800 HP – forced air induction.
- E85: up to 750 HP – naturally aspirated.
- E85: up to 550 HP – forced air induction.
-
Carbureted Engines:
- Gasoline: up to 1000 HP – naturally aspirated.
- Gasoline: up to 850 HP – forced air induction.
- E85: up to 900 HP – naturally aspirated.
- E85: up to 700 HP – forced air induction.

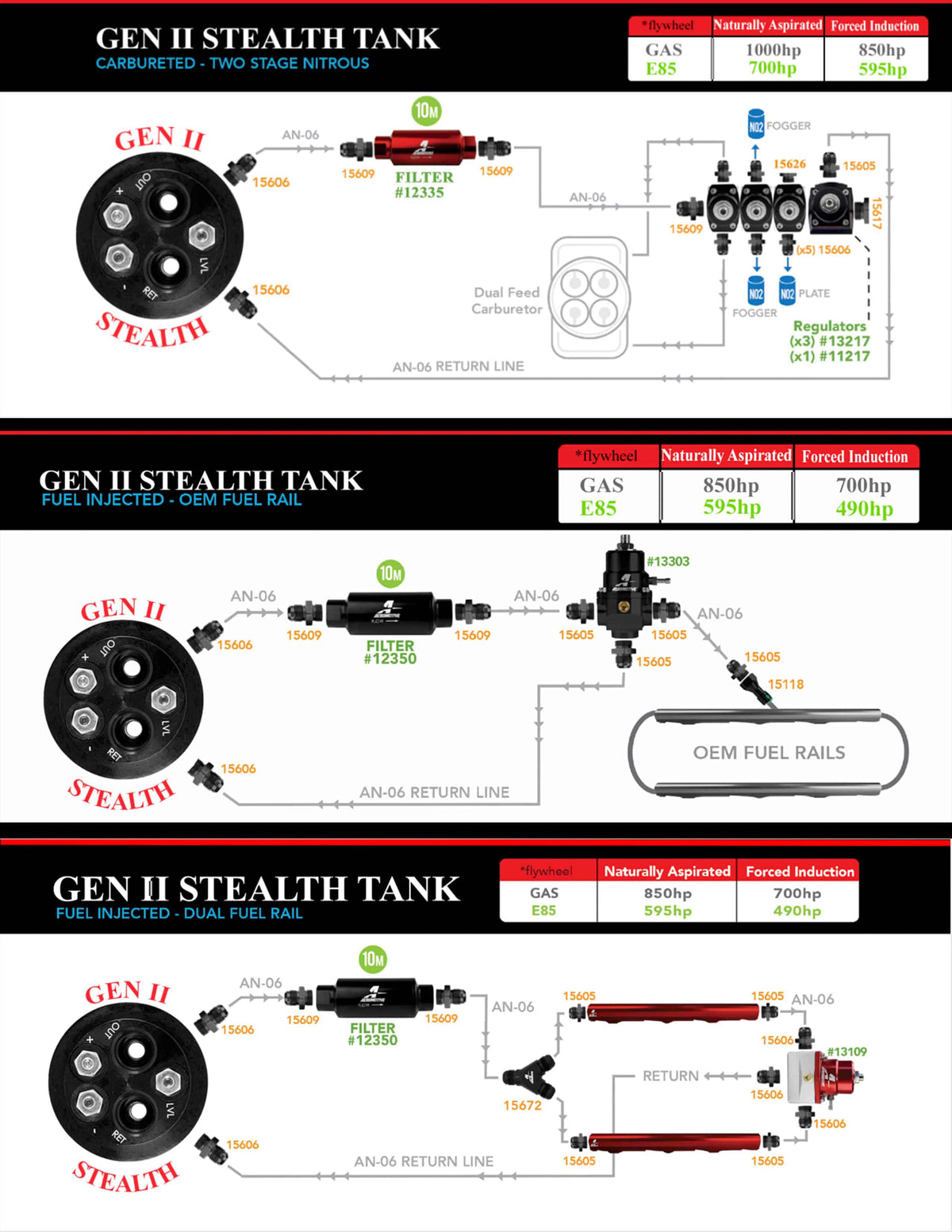

GEN II Stealth Tank Diagrams – Click Here
