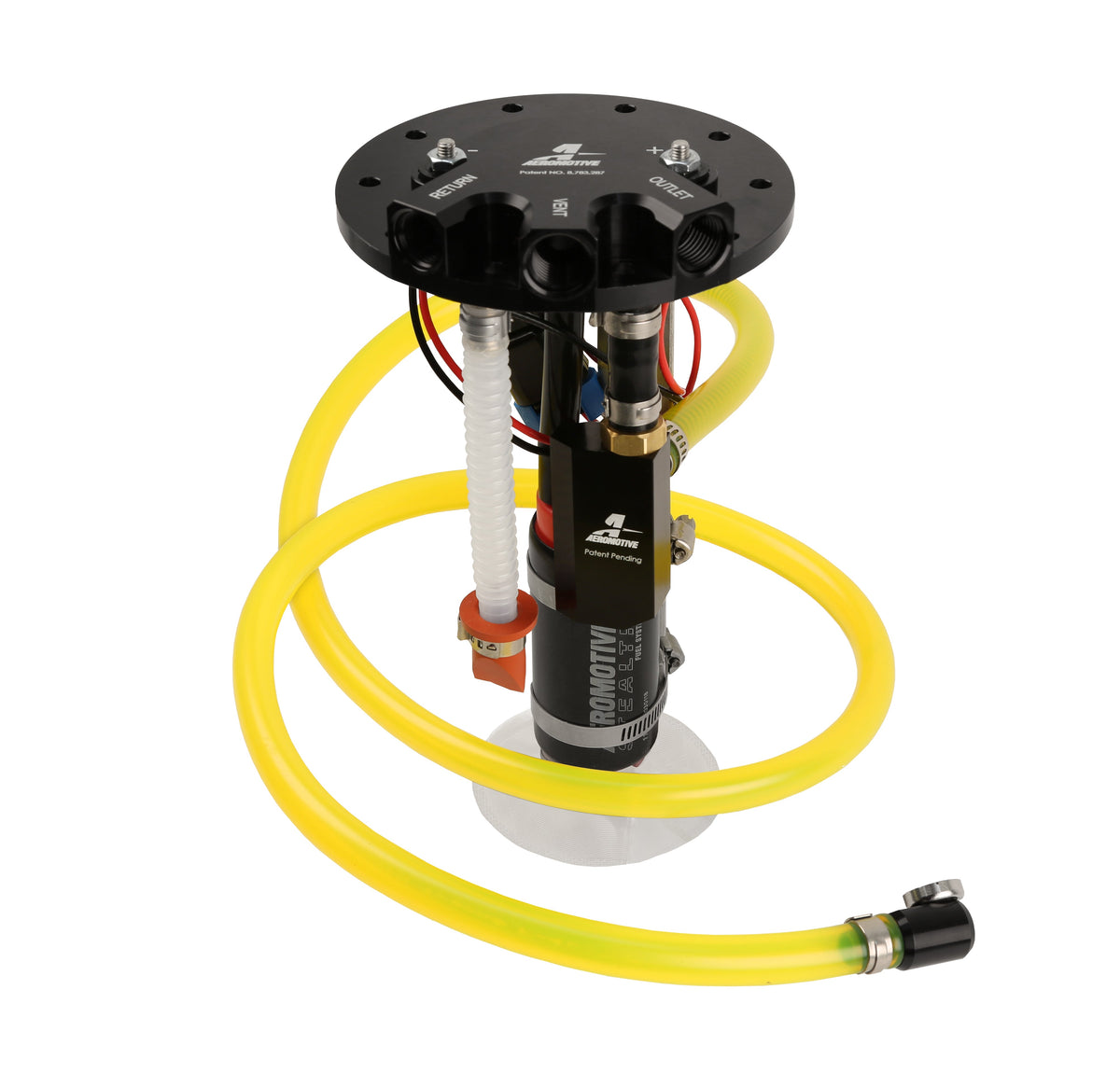

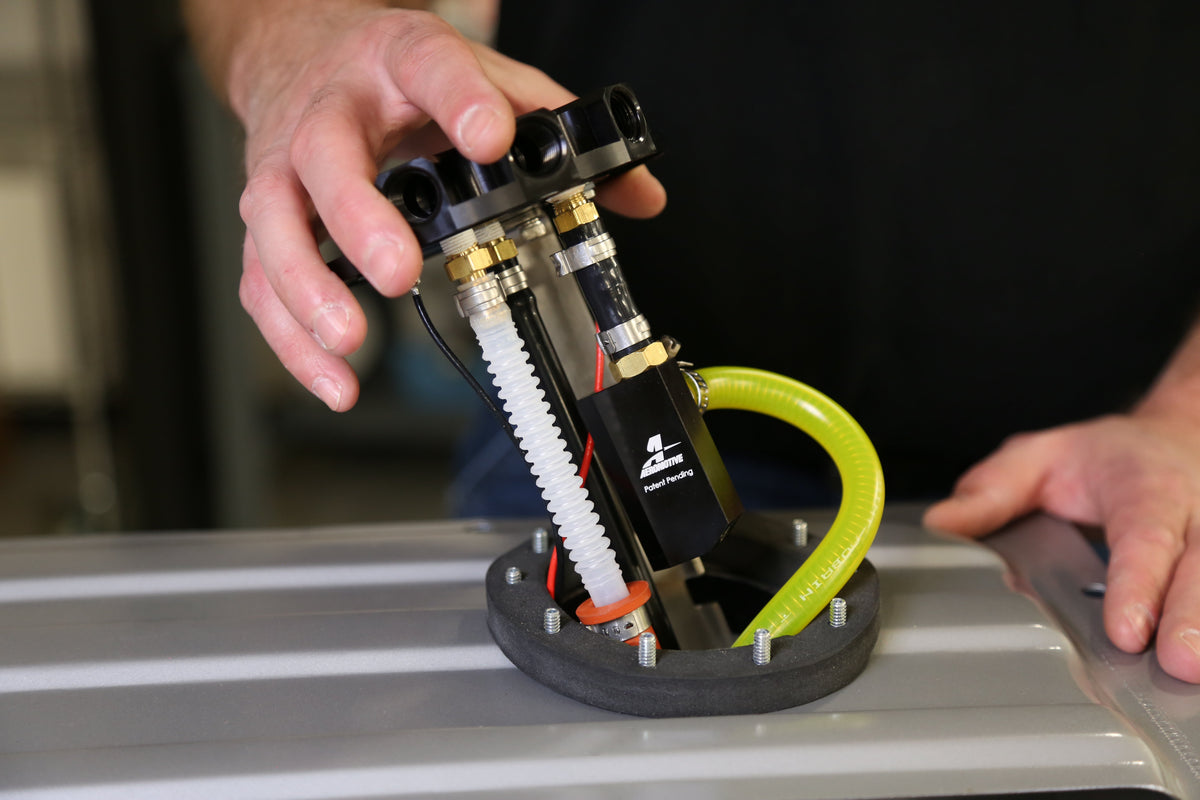

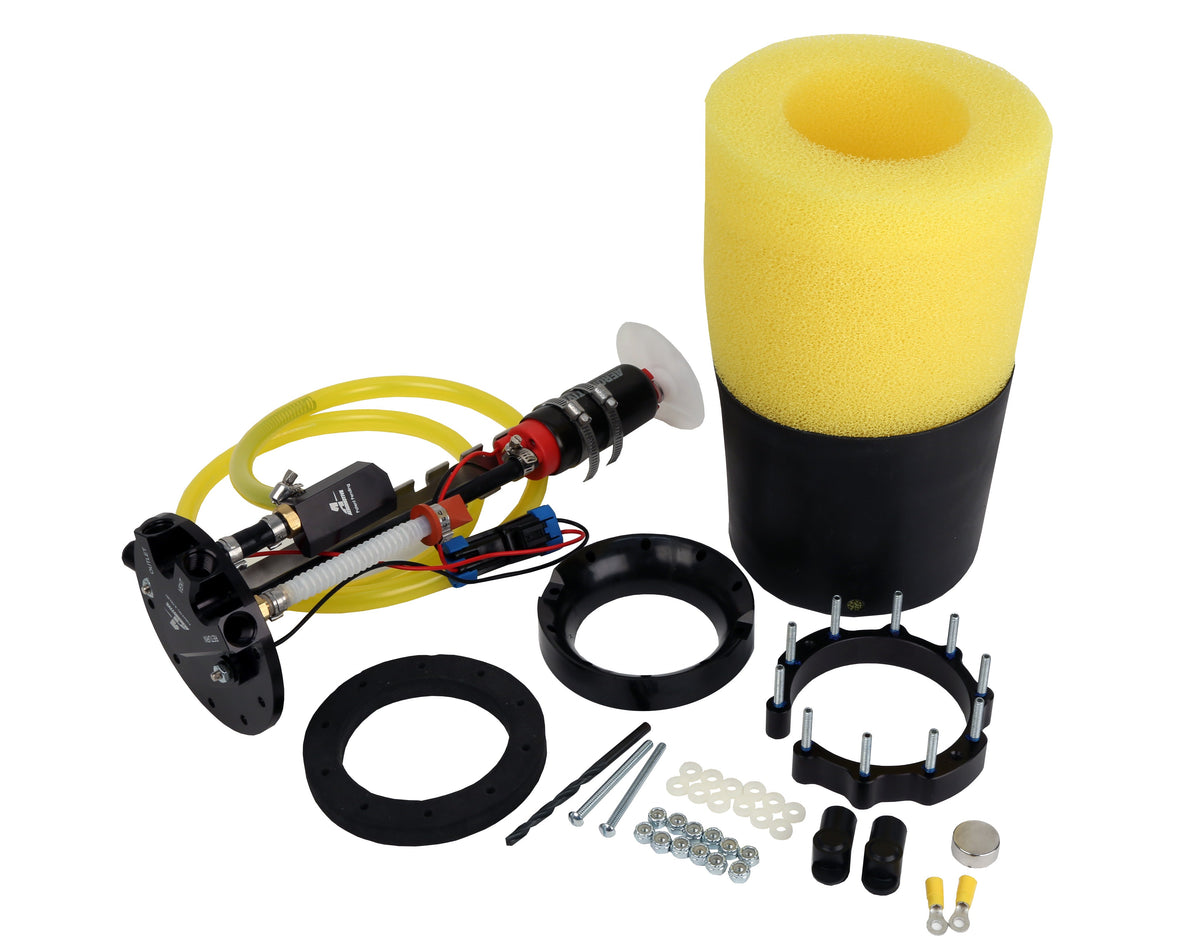

Phantom Apex with Jet Siphon In-Tank Fuel Pump Kit
340 lph
$1,016.32
Skip to product information
P/N 18704 Phantom 340 Apex Pump Kit
The best fuel surge and slosh control for off-road and road racing.
Ideal for late-model Pulse Modulated fuel systems with no return.
Features and Specifications:
Phantom Apex with Jet Siphon In-Tank Fuel Pump Kit
$1,016.32
18704
The best fuel surge and slosh control for off-road and road racing.
Ideal for late-model Pulse Modulated fuel systems with no return.
Features and Specifications:
- 340lph version supports – 595hp EFI / Forced Induction and 725hp EFI / Naturally Aspirated
- 450lph version supports - 700hp EFI / Forced Induction and 975hp EFI / Naturally Aspirated
- Low Profile, black anodized, CNC machined top-hat and stainless steel fuel pump hanger assembly
- ORB-06 Ports complete with supply, return and vent
- Fuel resistant baffle / basket (Includes: Foam and Bladder)
- Integral high flow pre-pump filter
- Flexible design can be cut to height to fit almost any fuel tank
- Turbine pump mechanism offers quiet pump operation, high flow capacity and increased durability.
- Can be used return style with bypass regulator with or without vacuum/boost reference.
- Fully compatible with return-less fuel systems using pulse modulated FPDM for pressure control.
- This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
- Phantom Bladder Baffles Check Valves recommended for return-less, pulse modulated systems.
