Triple 450 LPH Trifekta™ Returnless Fuel Pump System with VaporWorx Pulse Width Modulation Controller

Introducing the New Aeromotive Returnless Phantom Fuel System Kits. Engineered Specifically for use with the Vaporworx Fuel Pump Controllers. Utilizing the Vaporworx controller, we are able to completely eliminate the need for a fuel pressure regulator and return line. The Vaporworx fuel pump controller instantly varies the speed of the fuel pumps based on demand with use of a simple MAP sensor, creating an OEM+ style system, like all late model cars.  This reduces  the amount of heat introduced by the pump, creates  quieter operation and improves overall efficiency.

Bundle includes:

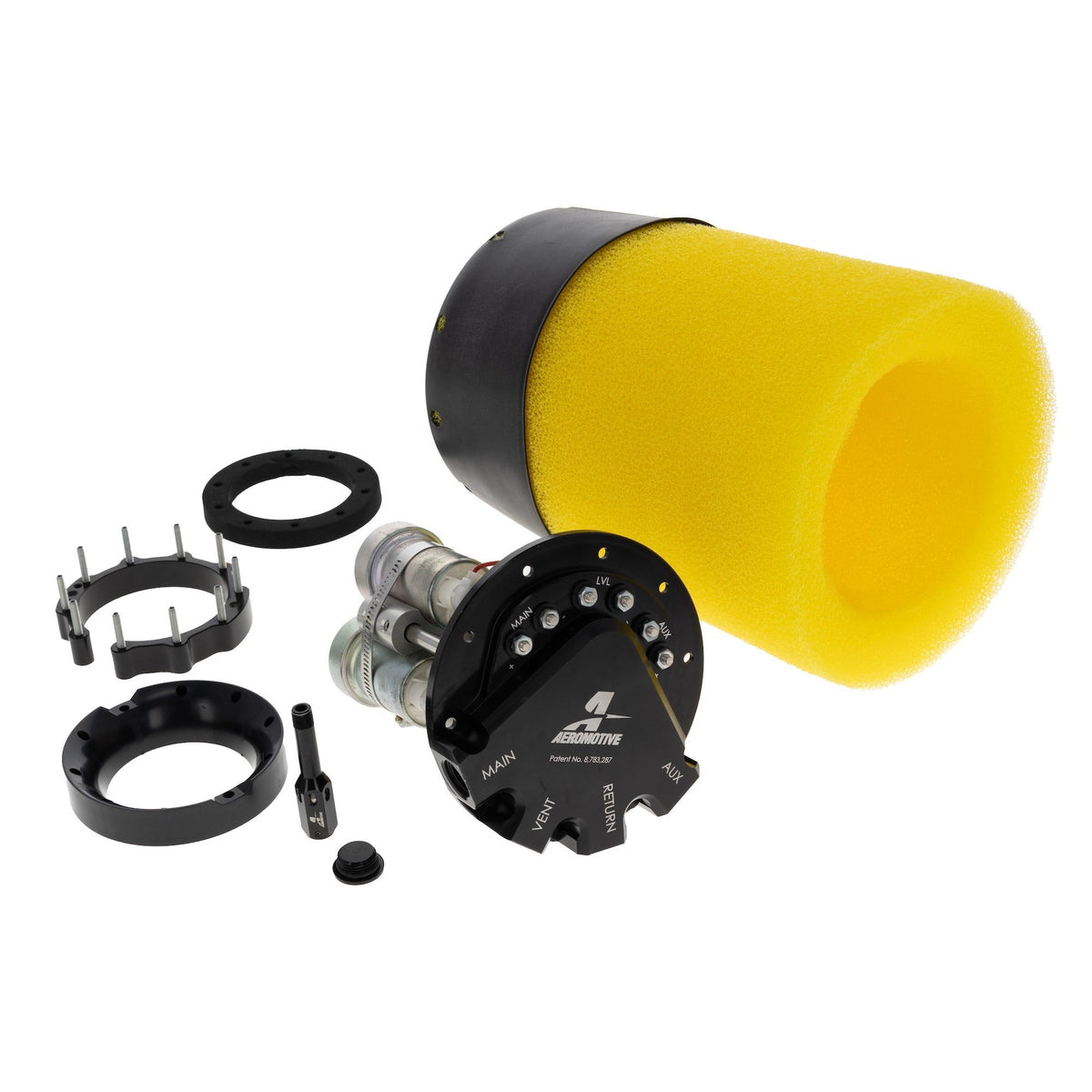

• Triple 450 LPH Trifekta™ Phantom Series Fuel Pump (#19147)
• Black anodized hanger assembly
• Fuel resistant baffle and basket
• Universal high flow pre-pump filter

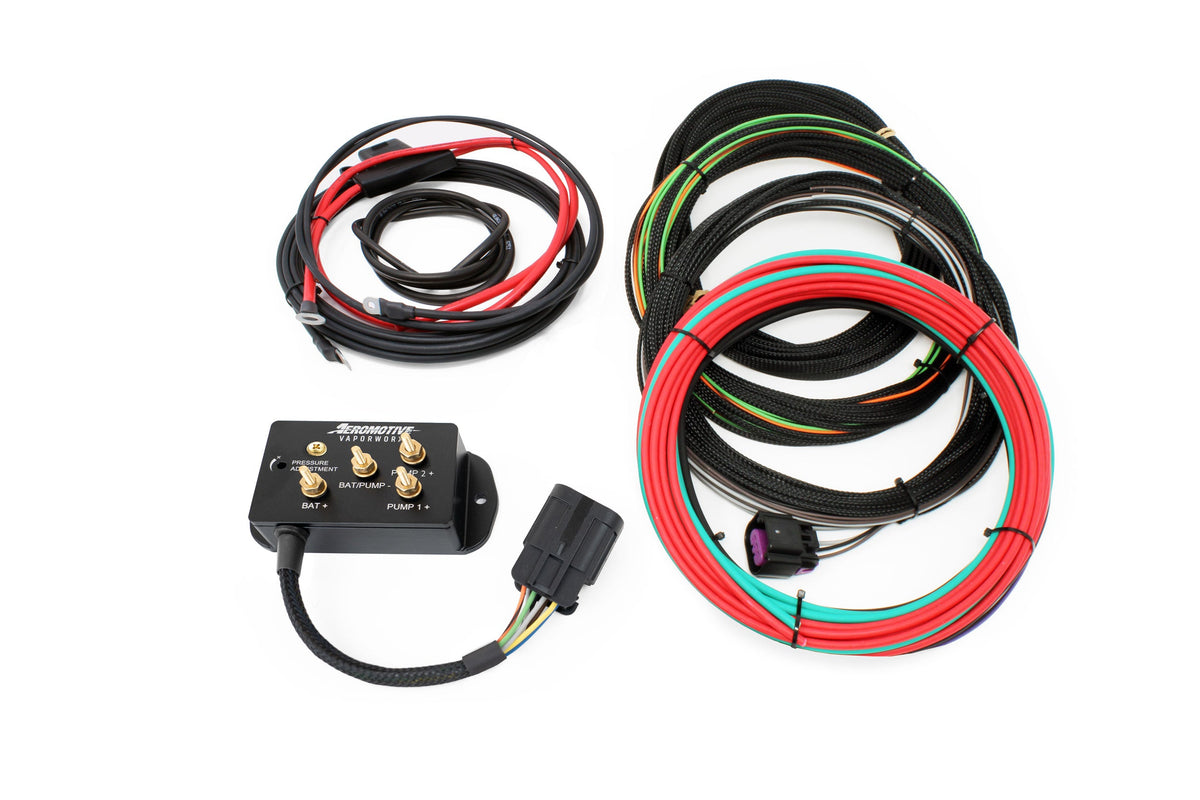

• Required VaporWorx Fuel Pump Controller (#66142)
• 85psi in-tank overpressure fail safe valve

Aeromotive’s Phantom Trifekta is designed to extend the patented Phantom technology into the realm of ultra-high horsepower street/strip applications. Equipped with triple 450lph, E85 friendly Walbro pumps, the new Aeromotive Trifekta supports staged pump control to reduce recycling and improve continuous duty capability. The Trifekta is ready to feed blown EFI applications making a whopping 1,650 FWHP on E85 and as much as 2,400 FWHP on gas.

Fuel Injected: GAS
Up to 3,300 FWHP - naturally aspirated
Up to 2,400 FWHP - forced induction

Carbureted Engines: GAS
Up to 3,900 FWHP - naturally aspirated
Up to 2,850 FWHP - forced induction

Fuel Injected: E85
Up to 2,250 FWHP - naturally aspirated
Up to 1,650 FWHP - forced induction

Carbureted: E85
Up to 2,700 FWHP - naturally aspirated
Up to 2,100 FWHP - forced induction

• Triple 450lph Walbro Fuel Pumps


• Patented Phantom Bladder technology


• Includes everything required to mount in-tank


• ORB-08 Outlet, Vent & Return Ports


• 6in Billet Top Cap : Requires Drilling 4.5in hole


• Three Sets of Electrical Terminals :  Main Pump, Auxiliary Pumps and Fuel Level Sending Unit



• Bundle is configured with the Returnless Style Kit (#19147) and required VaporWorx #66142 Fuel Pump Controller. For return style systems, we recommend purchasing the "Return Style Kit" Triple LPH Trifekta™ In-Tank Fuel Pump System (#18311)

• This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications.
